Overview

In the field of electronic engineering, voltage conversion modules serve as a bridge connecting low-voltage control and high-voltage applications. Among them, DC12V-2KV high-voltage power supply modules are widely used in industrial, medical, and communication scenarios. However, these high-voltage devices are susceptible to electrostatic discharge (ESD) and surge interference during operation, which may lead to system failures or even safety accidents. This article will provide an in-depth analysis of the technical principles, application areas, ESD and surge risks, and protection measures of DC12V-2KV.

I. What Is DC12V-2KV?

DC12V-2KV is a common voltage level description in electronic systems, encompassing two meanings:

  • Operating Voltage: The DC supply voltage during normal system operation is 12V (e.g., industrial control, security equipment).
  • Withstand Voltage: The circuit must withstand transient high voltages (such as ESD and lightning surges) peaking at 2kV to ensure no damage under extreme interference.

II. Application Areas

DC12V-2KV is widely used in scenarios requiring high voltage stability and anti-interference capabilities:

  • Automotive Electronics: Vehicle ECUs, sensors, entertainment systems (car battery voltage is approximately 12V, requiring protection against starting surges and electrostatic discharge).
  • Industrial Automation: PLCs, motor drivers, sensors (motor start-stop and lightning strikes can easily generate surges in factory environments).
  • Security Monitoring: Cameras, access control systems (outdoor equipment is susceptible to lightning strikes and electrostatic discharge).
  • Communication Equipment: Base station power supplies, routers (requiring protection against lightning surges and electrostatic interference).

III. Risks of Static Electricity and Surges

1. Electrostatic Discharge (ESD)

  • Contact with circuits can generate thousands of volts of static electricity (e.g., in dry environments, human static electricity can reach 15kV), instantly damaging sensitive components.
  • Risk: Damage to ICs, MOSFETs, and interface chips, leading to equipment malfunction or permanent failure.

2. Electrical Fast Transient (EFT)

  • Generated by relay and contactor switching, manifesting as high-frequency, high-voltage pulses (e.g., industrial motor start-up and shutdown).
  • Risk: Interference with signal transmission, leading to data errors or system restarts.

3. Lightning Surge

  • Lightning strikes couple through power lines or signal lines, generating transient high voltages in the kV range (e.g., in outdoor equipment).
  • Risk: Damage to insulation layers, burning of PCB traces, causing equipment failure.

IV. Semiware Protection Solution

TVS diodes are highly efficient transient voltage suppression devices, capable of nanosecond-level response, clamping voltage within a safe range.

Semiware SVB100B20 Parameters and Advantages:

ParameterSpecificationDescription
ModelSVB100B20TVS diode for surge protection
PackageSMB (DO-214AA)Compact SMD package, saves PCB space
Working VoltageSuitable for 12V systems (VR ≥ 12V)Prevents false triggering under normal operating conditions
Clamping Voltage22.2V – 24.5VLimits surge voltage to protect downstream circuits
Peak Pulse Power1000W (8/20μs)Capable of absorbing high-energy transient surges
Response Time< 1 nsFast response to suppress transient overvoltage

SVB100B20 datasheet:https://en.semiware.com/high-reliability-tvs-diodes/svb100b20/

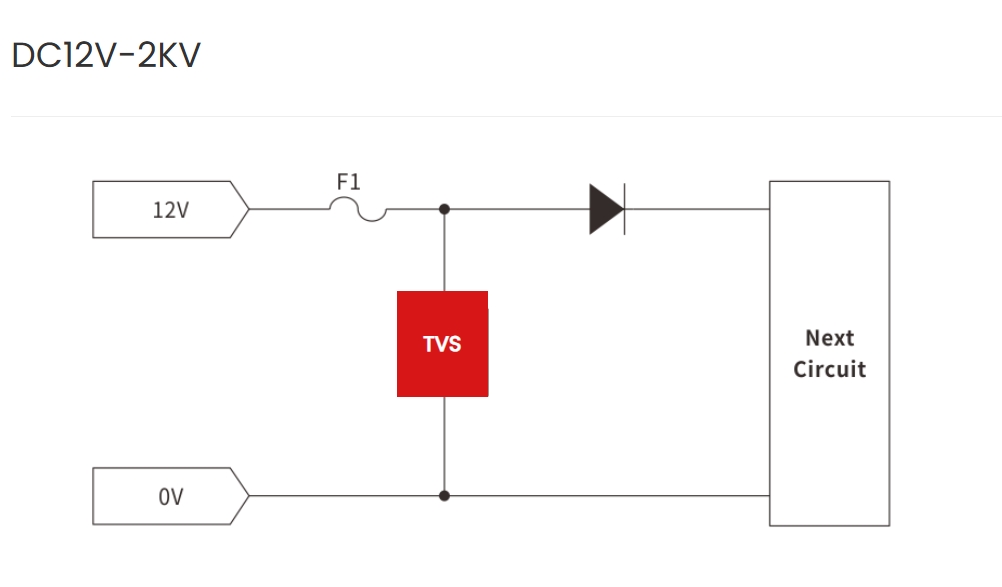

V. Typical Application Circuit

TVS Diode Solution for DC12V-2KV Power Supply Protection-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

Test Standard: 1.2/50μs-8/20μs CM/DM 2KV-1kA

Application Solutions: https://en.semiware.com/reference-designs/dc12v-2kv/

VI. Selection Considerations

  • TVS selection must match the input voltage and surge environment.
  • For high-energy lightning strikes or high-power loads, multi-level protection should be upgraded.
