GBLC03CI: 3.3V Ultra-Low Capacitance ESD Protection Device and Alternative Selection Guide

For USB, Ethernet, communication interfaces, and various high-speed I/O, ESD protection devices should not only focus on "withstanding electrostatic discharge" but also prioritize low capacitance, low leakage current, low clamping voltage, and sufficient surge capability for ESD/TVS devices.

Because:

• Excessive device capacitance may affect high-speed signals;
• Excessive leakage current increases system power consumption;
• Excessive clamping voltage may subject back-end ICs to greater transient stress.

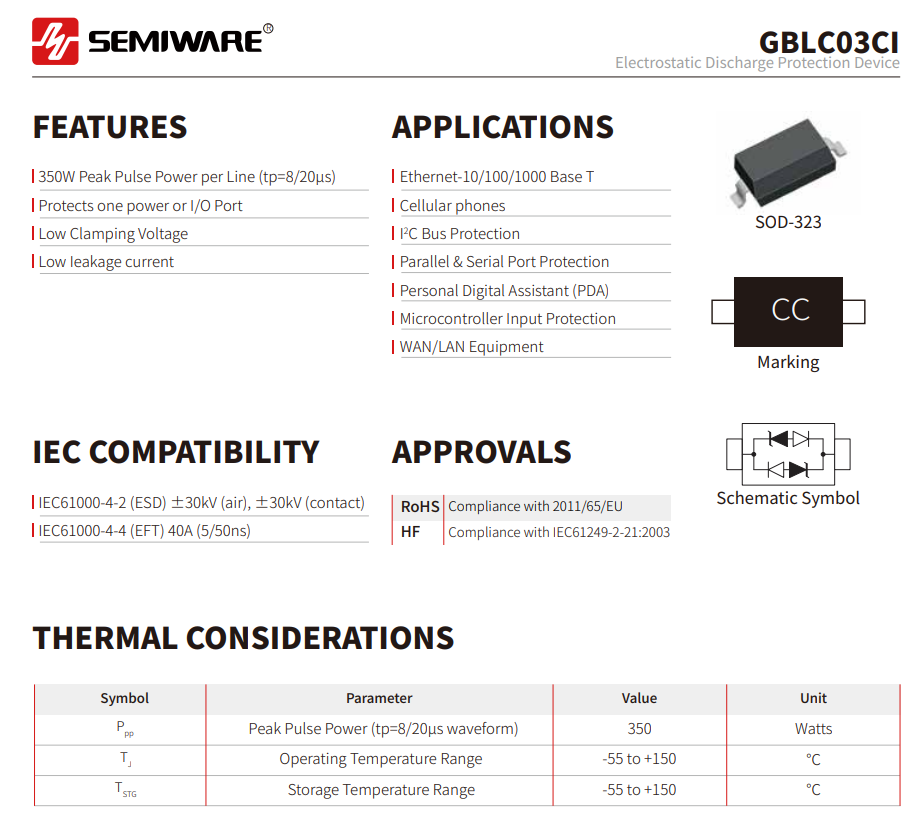

The Semiware GBLC03CI is a 3.3V bidirectional low-capacitance TVS/ESD protection device designed for these applications. It uses a compact SOD-323 package and maintains a 350W peak pulse power and 20A peak pulse current capability while keeping the junction capacitance at 0.6pF, making it suitable for interfaces sensitive to signal integrity.

I. Semiware GBLC03CI TVS Diode Array Key Features

Simply put, the GBLC03CI acts as a "buffer" between the connector and the chip.

When external electrostatic discharge (ESD) or transient interference enters the device through USB, network interface, or other I/O, the GBLC03CI can quickly conduct, bypassing the transient energy and limiting the voltage, thereby reducing the risk of damage to the downstream IC.

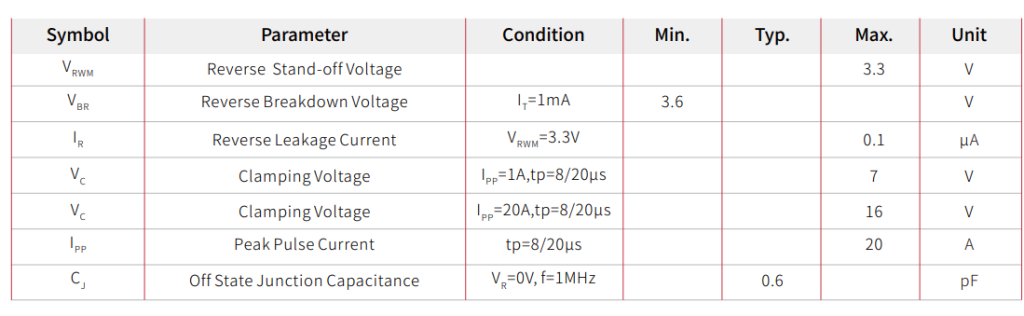

Key features of the GBLC03CI:

• 3.3V operating voltage
• Bidirectional TVS/ESD protection
• 0.6pF ultra-low junction capacitance
• 0.1μA ultra-low leakage current
• 16V @ 20A clamping voltage
• 20A peak pulse current
• 350W peak pulse power (8/20μs)
• IEC 61000-4-2: ±30kV Air / ±30kV Contact
• SOD-323 small package

III. Which common devices can the Semiware GBLC03CI ESD Diode replace?

For engineers optimizing BOMs or implementing a second supplier, another advantage of the GBLC03CI is its high compatibility with many 3.3V SOD-323 low-capacitance TVS/ESD devices on the market.

The following is a comparison of the main parameters of several common models:

Based on the analysis and comparison of core parameters, the Semiware GBLC03CI can be considered a feasible alternative to these devices.

IV. Why Choose Semiware GBLC03CI?

If existing suppliers' GBLC03CI-type devices already meet design requirements, the value of replacement is usually more than just "finding a component with similar parameters."

More importantly, it's about finding a more suitable balance between performance, cost, and supply.

4.1 Competitive Parameters

Low capacitance and low leakage current, in particular, reduce the impact of the protection device itself on high-speed signals and low-power systems.

4.2 More Competitive Procurement Costs

As a supplier of circuit protection devices such as TVS and ESD protection, Semiware can offer more competitive pricing options based on customers' applications, annual usage, and procurement plans.

4.3 More Flexible Delivery Times and Supply Support

Semiware provides sample support, technology selection, and mass production supply support, helping customers transition from sample verification to mass production.

V. Suitable Applications

5.1 Ethernet

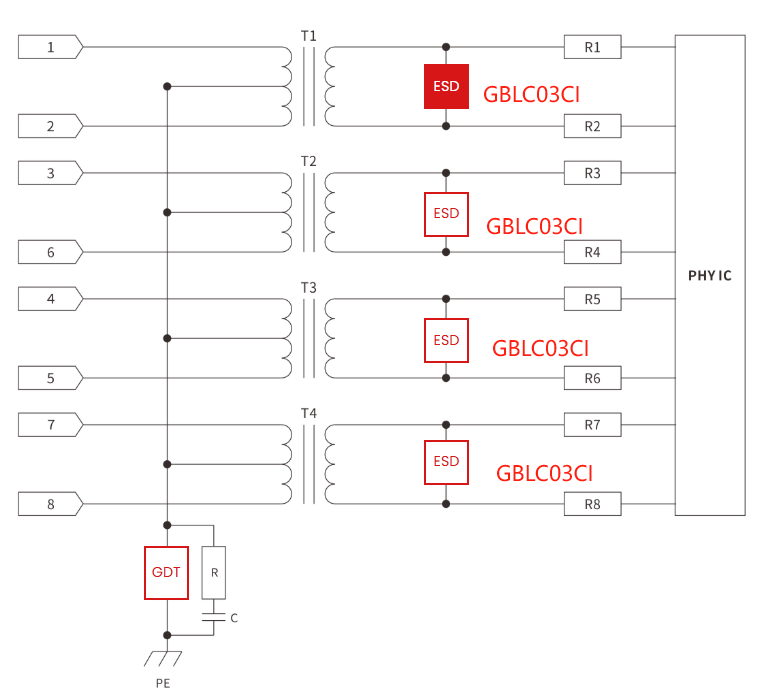

For network devices such as 10/100/1000 Base-T, the GBLC03CI can be placed near the interface to provide ESD protection for sensitive PHYs, MCUs, or communication chips.

5.2 USB and Other I/O

USB, serial interfaces, and other external connection ports can all become pathways for electrostatic discharge (ESD) into the device. The low capacitance of the GBLC03CI helps reduce additional load on the signal.

5.3 Portable Electronic Devices

Mobile phones, smart wearables, wireless devices, and similar products typically have limited space and are sensitive to low power consumption and signal integrity. The SOD-323's small package and 0.6pF low capacitance are well-suited for these designs.

5.4 WAN/LAN and Communication Equipment

For communication interfaces that directly connect to external cables, ESD, EFT, and other transient interferences can enter the device; therefore, effective transient protection is required at the interface location.

In summary,

the core value of the GBLC03CI is quite simple: small package, low capacitance, low leakage current, while retaining sufficient transient protection capability.

For engineers looking for 3.3V SOD-323 low-capacitance ESD/TVS devices, the Semiware GBLC03CI not only meets the basic requirements for high-speed interface protection but also serves as an alternative to similar devices from ProTek, Yageo, Wayon, UMW, and others.

If your project is currently undergoing second-supplier implementation, BOM cost-down, or supply chain optimization, Semiware can provide alternative solutions in terms of device parameters, sample verification, pricing, and supply support.
