GBLC08CI: 8V Low-Capacitance ESD Protection Device Parameters and Alternative Selection Analysis

Introduction

In Ethernet, communication equipment, industrial control, and various external I/O interfaces, TVS/ESD protection devices typically need to meet several requirements simultaneously:

The operating voltage must be compatible, the transient protection capability sufficient, the package size appropriate, and the impact on signals must be minimized as much as possible.

1. 8V TVS Selection: More Than Just "8V"

When selecting a TVS, VRWM is usually the first parameter engineers focus on.

The VRWM of GBLC08CI is 8V, indicating that the device can continuously withstand a maximum reverse operating voltage of 8V under normal operating conditions without entering a significant avalanche conduction state.

However, simply looking at VRWM is insufficient to determine whether a TVS is suitable for a practical design. The following should also be considered:

• VBR: Determines the voltage at which the device begins to enter the breakdown region.
• VC: Determines the ultimate voltage limitation under transient current.
• IPP/PPP: Reflects the device's transient withstand capability.
• Capacitance: Affects signal integrity.
• Leakage Current: Affects the system's static power consumption and interface bias.

Therefore, a suitable 8V TVS for interface protection essentially involves finding a reasonable balance among these parameters.

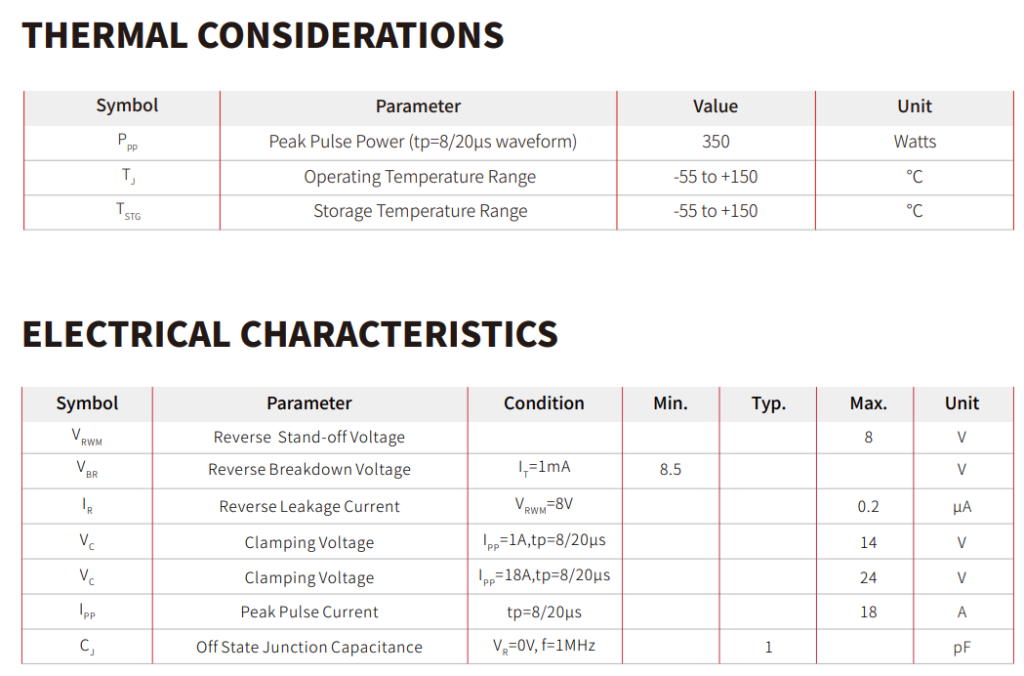

2. Semiware GBLC08CI Key Features

The Semiware GBLC08CI is a bidirectional low-capacitance TVS protection device. Its key features include:

2.1 Low-capacitance design, suitable for signal interface protection

• The TVS itself becomes part of the signal path. If the parasitic capacitance is too high, it may affect the integrity of high-speed signals.
• The GBLC08CI employs a low-capacitance design, making it more suitable for Ethernet, communication interfaces, and other applications sensitive to parasitic capacitance.

2.2 Bidirectional Protection, Adaptable to Bidirectional Signal Lines

• The GBLC08CI employs a bidirectional TVS structure, providing protection against both positive and negative transients.
• For communication lines and other bidirectional signal interfaces, this structure offers good application flexibility and avoids the complexity of using different protection structures for signals in different directions.

2.3 SOD-323 Package, Balancing Size and Protection Capability

• The GBLC08CI uses an SOD-323 package, providing interface-level transient protection capabilities with a small PCB footprint, making it suitable for space-constrained compact designs.

2.4 Low Leakage Current, Reducing Additional Load on the System

• The GBLC08CI features low leakage current characteristics, reducing the additional load on the system caused by the protection device during normal operation.

III. GBLC08CI TVS Diode Array Applications

3.1 Ethernet

Ethernet interfaces connect to external cables via RJ45, representing a typical external ESD entry path.

The GBLC08CI can be used for interface-side protection, providing a discharge path for transient currents while mitigating the impact on high-speed signals with its low 1pF capacitance.

3.2 WAN/LAN Communication Equipment

Routers, switches, gateways, and other communication devices typically contain multiple external communication ports.

3.3 USB and Other I/O

External connectors are among the easiest places for ESD to enter a device.

For capacitively sensitive I/O signals, low-capacitance TVS devices are more suitable than traditional high-capacitance protection devices.

3.4 MCU and Industrial Control Interfaces

MCU I/O connecting external sensors, buttons, communication modules, or other devices may also be directly exposed to ESD environments. The GBLC08CI can be used for interface-level protection of these external I/Os.

IV. Semiware GBLC08CI TVS Diode - A Reliable Alternative

There are several 8V SOD-323 bidirectional TVS diodes on the market with similar specifications, such as Bourns CDSOD323-T08C, Yageo UDD32C08L01, UMW GBLC08CI, and ProTek GBLC08C. The following analysis details why Semiware is a reliable alternative.

From a core electrical parameter perspective, the Semiware GBLC08CI has a high degree of specification matching with the aforementioned devices, thus making it a viable candidate for a second source or BOM cost-down solution.

V. Why Consider Semiware?

Customers' substitution needs are usually not just due to technical reasons. In actual projects, common reasons include:

High original brand prices necessitate BOM cost-down; Unstable delivery times require the addition of a second source; Limited supply channels necessitate mitigating supply chain risks; Projects entering mass production require long-term stable supply.

Semiware not only offers compatibility in core parameters, but more importantly, it provides more competitive cost solutions and mass production delivery support.

Summary

For projects evaluating replacements for similar devices from Bourns, Yageo, UMW, ProTek, etc., the GBLC08CI is a competitive candidate, offering further flexibility in terms of cost, delivery time, and supply.

If you are looking for GBLC08CI samples, alternative components, or second-supplier solutions, please contact Semiware.
