Introduction
In communication equipment, industrial control, network equipment, and various electronic products with external interfaces, ESD and transient overvoltages are critical factors affecting system stability and reliability.
For designs using 15V bidirectional TVS diodes in SOD-323 packages, the GBLC series is a common type of device on the market. The Semiware GBLC15CI exhibits high compatibility with the ProTek GBLC15CI, Bourns CDSOD323-T15C, and Yageo UDD32C15L01 in terms of operating voltage, package type, and basic protection characteristics, thus becoming a typical device in alternative and second-party supplier evaluations.
This article will analyze the GBLC15CI and several similar devices from the perspectives of device parameters and practical applications.
I. Semiware GBLC15CI: For 15V Interface and Signal Protection
GBLC15CI Working Principle:
Under normal operating conditions, the device maintains high impedance. When the line is subjected to ESD or other transient overvoltage surges, it can quickly enter avalanche conduction mode, discharging the transient current to ground and reducing the transient voltage experienced by subsequent circuits through clamping.

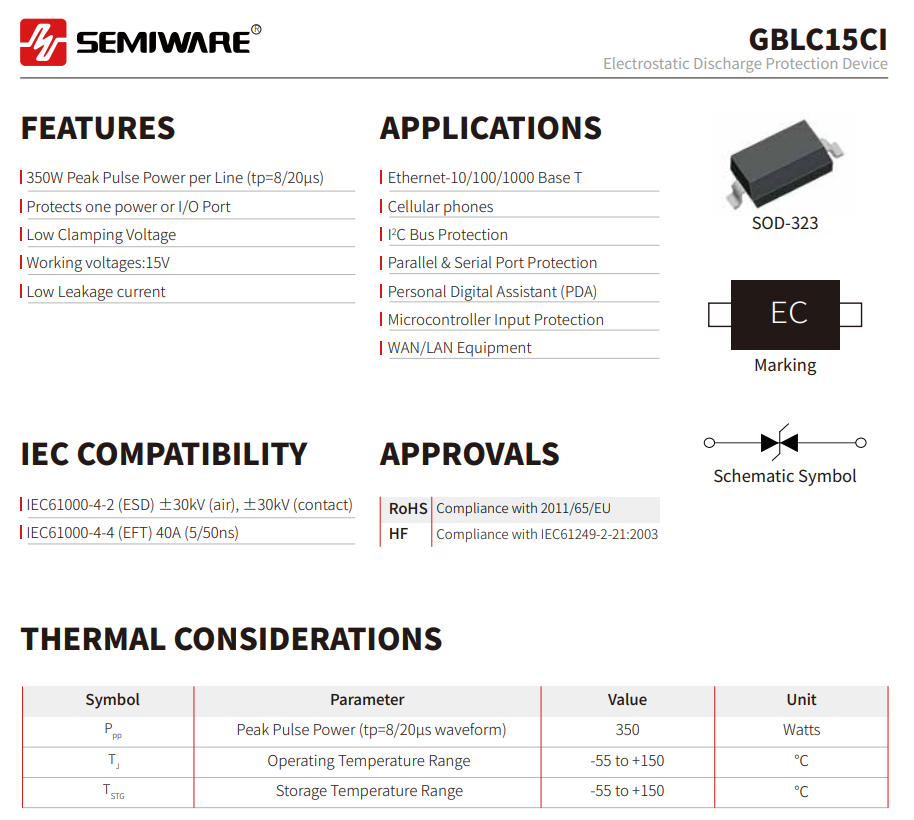

Key parameters of GBLC15CI include:

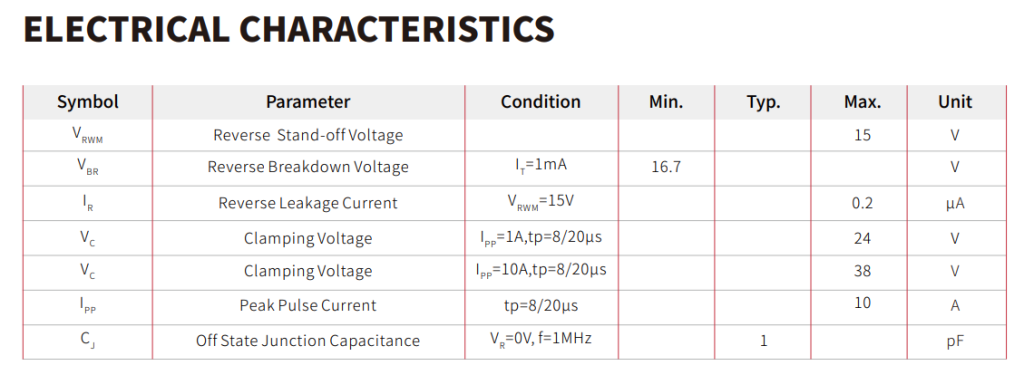

| Parameter | GBLC15CI |
| VRWM | 15V |
| VBR | 16.7V min |
| VC @ 10A | 38V max |
| PPP | 350W |
| IPP | 10A |
| CJ | 1pF |
| Package | SOD-323 |
II. Main Advantages of GBLC15CI
2.1 15V Operating Voltage, Suitable for Multiple Interface Protection
GBLC15CI has a reverse operating voltage of 15V and is widely used in industrial control, communication equipment, and various interface circuits.
2.2 350W Peak Pulse Power
Semiware GBLC15CI has a peak pulse power of 350W, with a test waveform of 8/20μs.
2.3 ±30kV ESD Protection Capability
The Semiware GBLC15CI supports IEC 61000-4-2 testing requirements, with air discharge and contact discharge capabilities up to ±30kV. It also supports IEC 61000-4-4 EFT testing.
2.4 Bidirectional Protection Structure
The GBLC15CI employs a bidirectional TVS structure, providing protection against both forward and reverse transients.
III. GBLC15CI Applications
3.1 Ethernet Interface Protection
- Ethernet interfaces connect to external devices via network cables, making the interface susceptible to ESD and external transient interference.
- The GBLC15CI can be used in 10/100/1000 Base-T applications, suppressing transient voltages at the interface and reducing the risk of transient interference entering the PHY and subsequent circuits.
- In practical designs, it is recommended to place the TVS as close as possible to the external connector and optimize the protection path and grounding loop.
3.2 MCU and I/O Port Protection
MCU GPIO and other I/O ports are typically connected directly or indirectly to external circuitry.
Electrostatic discharge (ESD) can enter the system along I/O lines when external devices are plugged in or unplugged, or when personnel touch the connectors.
The GBLC15CI can be positioned between the external interface and the MCU to provide ESD and transient protection for the I/O.
Suitable for:
- MCU GPIO
- Controller I/O
- Sensor Interfaces
- Industrial Control Signals
- Instrument Interfaces
- Industrial Control Equipment
Industrial equipment typically contains numerous external I/O interfaces, and the electromagnetic interference and transient interference in the operating environment are relatively complex.
The GBLC15CI can be used for interface protection of PLCs, industrial controllers, data acquisition devices, and various control modules.
In these applications, TVS (Transient Voltage Suppressor) is primarily used to reduce the impact of ESD, EFT, and other transient interference on the MCU, communication ICs, and control circuits.
3.3 Communication Interfaces
Communication lines often require connection to external devices or involve long cables, making them easy pathways for transient interference to enter the system.
The GBLC15CI's bidirectional structure is suitable for various bidirectional communication lines and can be used for:
- RS-485, I²C, serial interfaces, parallel interfaces, data acquisition interfaces, and industrial communication equipment.
For high-speed communication lines, it is necessary to further evaluate the parasitic capacitance and signal integrity of the TVS in conjunction with the actual operating frequency.
IV. Application Value of GBLC15CI as a Replacement
For products already using a similar 15V SOD-323 bidirectional TVS, GBLC15CI can be evaluated as a replacement or a second supplier option.
The value of Semiware GBLC15CI as a replacement lies not only in electrical parameters but also in the supply chain.
4.1 Maintains the original protection architecture without requiring changes to the PCB design.
4.2 Provides more supply options for procurement
A single supplier may bring risks regarding delivery time, price, and supply stability.
Semiware can conduct replacement evaluations based on the customer's existing TVS model, application circuit, and key parameters, and provide corresponding samples and technical support.
4.3 Balancing Performance and Cost
TVS diodes are Semiware's main protection devices. With its own production line, Semiware can provide maximum support to customers in terms of delivery time and cost.
Conclusion
For electronic products requiring 15V bidirectional TVS protection, device selection requires consideration not only of operating voltage and package but also a comprehensive evaluation based on ESD rating, clamping performance, transient power, and the actual application environment.
If you are looking for a reliable TVS alternative, Semiware can assist with replacement selection, sample verification, and mass production evaluation based on existing models, application conditions, and key electrical parameters.
