GBLC24CI Alternative: 24V SOD-323 Bidirectional TVS Diode and Applications

Introduction

The 24V SOD-323 bidirectional TVS diode is a common device in many interface protection designs. However, engineers and purchasing personnel often encounter changes in lead times, costs, or supply stability, necessitating the search for compatible products.

The Semiware GBLC24CI is a 24V TVS diode designed to meet these needs, widely used in Ethernet, industrial I/O, MCU interfaces, and communication lines. This article will introduce the suitability of the GBLC24CI as a 24V TVS alternative from the aspects of key parameters, alternative matching, and practical applications.

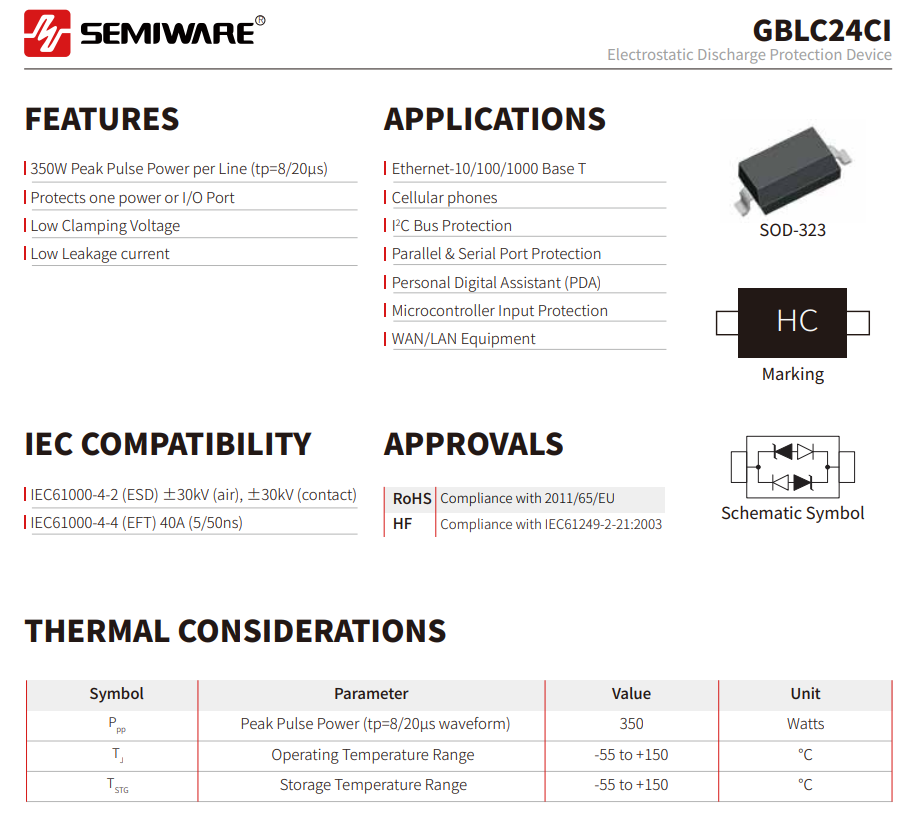

📌 Key Features of Semiware GBLC24CI

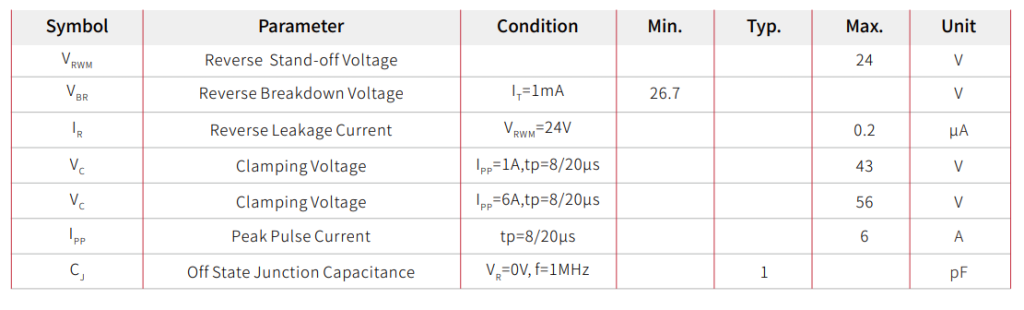

GBLC24CI key parameters：

GBLC24CI key advantages：

• 24V operating voltage suitable for industrial control, communication, and interface lines.
• 350W peak pulse power, ±30kV ESD protection, meeting both ESD and transient pulse protection requirements.
• Bidirectional protection is suitable for communication lines and bidirectional signals, eliminating the need for separate protection schemes for positive and negative polarities.
• The SOD-323 package provides adequate protection while reducing PCB footprint.

📌 Why Is an Alternative to GBLC24CI Needed?

For 24V SOD-323 bidirectional TVS diodes, several mature devices are already available on the market, such as ProTek GBLC24CI, Bourns CDSOD323-T24C, Yageo UDD32C24L01, and Prisemi PTVSLC3D24VB.

These products are widely used in various interface and signal protection designs. However, in actual projects, tight deadlines, cost optimization, or the need to establish a second supplier often necessitate finding a performance-compatible, packaged, and reliably supplied alternative.

📌 Parameter Comparison: CBLC24CI vs. Mainstream Brands

In summary, the Semiware GBLC24CI shows a high degree of compatibility with several brand products on the market in key indicators such as packaging, voltage rating, bidirectional protection structure, peak pulse current, and ESD protection capability. It can be evaluated as an alternative to the 24V SOD-323 bidirectional TVS or as a second supplier solution.

📌 GBLC24CI TVS Diode Array Applications

1. Ethernet Interface Protection

The GBLC24CI can be used in 10/100/1000 Base-T Ethernet applications, providing a transient discharge path near the connector, reducing the risk of interference entering the PHY and subsequent circuitry.

2. Industrial Control and 24V I/O

PLCs, industrial controllers, data acquisition devices, sensors, and automation modules typically contain numerous external I/O interfaces, which may connect to long cables or external devices.

The GBLC24CI can be used in these I/O lines to provide ESD and transient protection for controllers and interface ICs.

3. MCU and Controller Interfaces

The MCU's GPIO, control inputs, and external sensor interfaces can all become pathways for ESD to enter the system.

The GBLC24CI can be positioned between the external connector and the MCU, providing a discharge path before transients enter the chip.

4. Communication Interfaces

For communication lines that need to connect to external devices, ESD and transient protection must also be considered.

Examples:

I²C Serial Interface Parallel Interface WAN/LAN Devices Industrial Communication Modules Data Acquisition Devices

📌 Summary

Whether as a replacement for existing TVS devices or to establish a second supplier, the GBLC24CI provides a more flexible supply option for Ethernet, industrial I/O, MCU interfaces, and communication devices.

If you are looking for an alternative to ProTek GBLC24CI, Bourns CDSOD323-T24C, Yageo UDD32C24L01, or Prisemi PTVSLC3D24VB, please contact Semiware for GBLC24CI samples and alternative selection support.
