RJ11 Interface Surge and ESD Protection: An Analysis of Semiware's Two-Stage Protection Solution

I. Why RJ11 Interfaces Require Surge and ESD Protection

In communication networks, POS terminals, fax machines, and various types of modem equipment, the RJ11 interface serves as the critical conduit for connecting external telephone lines. However, because telephone lines are often deployed aerially over long distances, they are highly susceptible to transient disturbances—specifically Electrostatic Discharge (ESD), lightning-induced surges, and power line crosstalk.

To address this challenge, Semiware has introduced a highly effective protection solution for RJ11 interfaces.

This article provides a detailed analysis of a two-stage protection design—utilizing Gas Discharge Tubes (GDTs), Thyristors, and Resettable Fuses—that achieves high-reliability EMC protection while simultaneously ensuring the signal integrity of 56 kHz communication signals.

II. Primary Sources of Risks

The primary threats facing RJ11 interfaces stem from two main sources:

1. Lightning Surges: When lightning strikes nearby power lines or communication cables, it induces high-voltage pulses—potentially reaching thousands of volts—onto the telephone lines. This energy is immense, and standard TVS diodes are often unable to withstand it effectively on their own.

2. Electrostatic Discharge (ESD): When users plug in or unplug telephone lines, static electricity accumulated on the human body may come into direct contact with the interface pins, thereby damaging sensitive logic circuits.

Semiware recommends adopting a "Two-Stage Protection" or "Integrated Protection" strategy to safeguard signal transmission while effectively diverting sufficient surge energy.

III. Semiware's RJ11 Interface Protection Solutions

Solution 1: Discrete Two-Stage Protection (High Reliability)

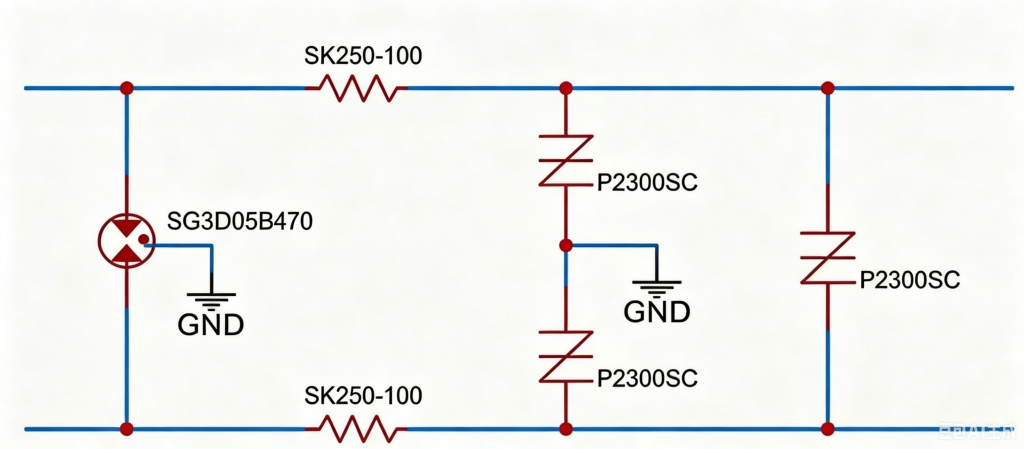

This solution utilizes a Gas Discharge Tube (GDT) as the first stage to divert large currents, and a Thyristor as the second stage to clamp the voltage; a PPTC acts as an intermediate decoupling element to coordinate the two stages.

1. First-Stage Protection: SG3D05B470 GDT

When an external lightning surge enters the RJ11 interface, the GDT is the first to trigger, rapidly diverting the high-energy surge current.

2. Decoupling Component: SK250-100 PPTC

Its function is to coordinate the operation of the preceding and succeeding protection components; by utilizing a voltage drop, it ensures the circuit triggers smoothly while simultaneously limiting abnormal currents.

3. Secondary Protection: P2300SC Thyristor

The P2300SC features a fast response speed and rapidly clamps residual voltage, ensuring the safety of downstream circuitry.

Solution 2: Integrated High-Efficiency Protection (Space-Saving)

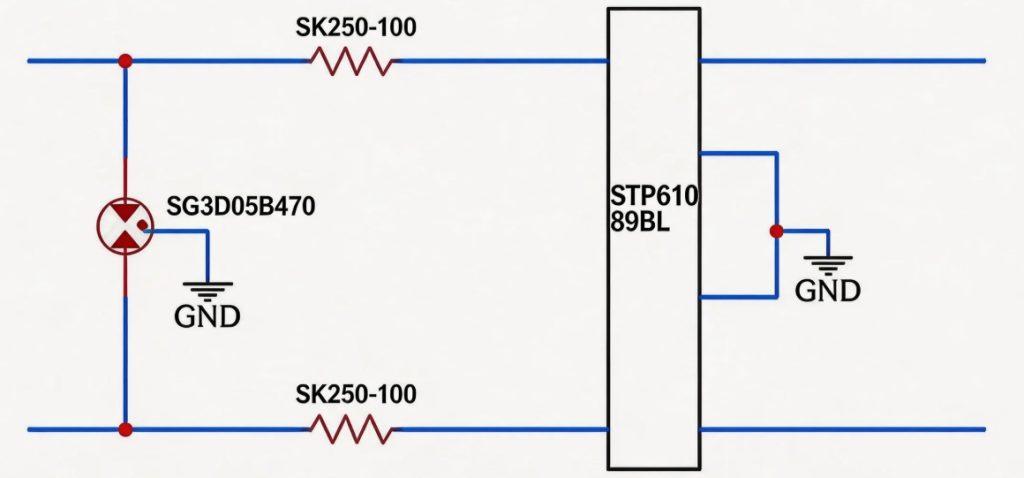

To simplify PCB layout, Semiware has introduced an integrated solution based on the STP61089BL.

STP61089BL - a 4-channel integrated thyristor protection.

Compared to using three separate P2300SC devices, the advantages of this solution include:

• A single STP61089BL replaces multiple discrete components
• Significantly reduces required PCB area
• Lowers BOM costs
• Enhances assembly efficiency

IV. Core Components Parameters

V. EMC Protection Capabilities

Semiware RJ11 protection solutions can meet the following standards:

VI. Typical Applications

Semiware RJ11 protection solutions are suitable for:

• Telephones
• DSL/ADSL modems
• POS terminals
• Alarm systems
• Industrial communication equipment
• Smart building systems
• Fax machines
• Telecom interface modules

Through strategic layout, Semiware's protection solutions enable engineers to easily design robust RJ11 interfaces that offer protection against both lightning strikes and electrostatic discharge.

👉 For more RJ11 and telecom interface protection solutions, visit: https://en.semiware.com/contact/
