The SE06F10B5.0MA-SP is a high-performance, cost-effective 5.0V low-clamping-voltage (Vc) single-channel bidirectional, low-capacitance ESD diode in an ultra-small DFN0603 package. It can replace Nexperia's PESD5V0HS-SF, Onsemi's ESD7501MUT5G, Texas Instruments' ESD451DPLR, and KEC's PS05TBEL2D.
I. Core Parameter Comparison
| Part No. | Supplier | IEC61000-4-2 Air/Contact | Vwm (V) | Vbr (V) | Vcmax @ IPP | Cj (pF) |
| SE06F10B5.0MA-SP | Semiware | ±20kV / ±20kV | 5 | 6 | 5V@9A | 0.5 |
| PESD5V0HS-SF | Nexperia | ±15kV / ±15kV | 5 | 6 | 7.5V @ 4.0A | 0.25–0.4 |
| ESD7501MUT5G | Onsemi | ±16kV / ±16kV | 5 | 5.5 | 11.5V @ 2.0A | 0.45–0.75 |
| ESD451DPLR | TI | ±30kV / ±30kV | 5.5 | 7 | 9.5V @ 6A | 0.5 |
| PS05TBEL2D | KEC | ±25kV / ±20kV | 5 | 5.5 | 12V @ 4A | 0.3–0.5 |
II. SE06F10B5.0MA-SP Performance Characteristics
The SE06F10B5.0MA-SP is an ultra-low capacitance ESD protection device designed for high-speed signals and low-capacitance sensitive interfaces, providing a high level of surge and electrostatic discharge protection while ensuring extremely low signal interference.
1️⃣ High-level system-level ESD/Surge protection capabilities
IEC 61000-4-2 ESD protection capability:
- ±20kV (contact discharge)
- ±20kV (air discharge)
IEC 61000-4-5 Surge capability: 9A (8/20µs)
👉 Suitable for outdoor interfaces, long cables, and high-interference environments
2️⃣ Ultra-low capacitance, ensuring high-speed signal integrity
Junction capacitance: Cj = 0.5pF (typ)
👉 Significance for high-speed signals:
- Reduces insertion loss
- Reduces signal edge distortion
- Supports high-speed protocols such as USB 3.0 / HDMI / DP
3️⃣ Ultra-low clamping voltage, improving IC protection margin
- TLP (16A): 4V
- VC: 5V @ 9A
- IPP: max 9A
👉 Core value:
Effectively limits overvoltage even under high-energy ESD events, protecting downstream SoC / PHY / RF chips
4️⃣ Extremely low leakage current, suitable for low-power systems
Leakage: 100nA
👉 Advantages:
- Extended battery life
- Suitable for always-on devices (IoT / wearable)
5️⃣ Ultra-small package design
DFN1006 (0.6 × 0.3 mm)
👉 Advantages:
- Saves PCB space
- Supports high-density layout
- Suitable for miniaturized consumer electronics
6️⃣ Industrial-grade reliability
Operating temperature: -55°C ~ +125°C
III. SE06F10B5.0MA-SP Datasheet
IV. SE06F10B5.0MA-SP Application Scenarios
1️⃣ High-speed / Sensitive Interface Protection
SE06F10B5.0MA-SP is particularly suitable for protecting interfaces with high signal integrity requirements:
- USB 2.0 / USB 3.0
- HDMI 1.4 / 2.0
- DisplayPort 1.3
- eSATA
- SIM card interface
- High-speed data cable & Communication Signal Lines
👉 These interfaces are "high-speed + susceptible to ESD damage + extremely sensitive to capacitance"
2️⃣ Typical End-User Applications (Categorized by Scenario)
Smart Consumer Electronics：
- Wearable Devices
- Smart Speakers
- Portable Electronic Products
- Robot Vacuum Cleaners
Display and Computing Devices：
- TVs/Monitors
- Portable Computers/Desktops
- Dockyards
Industrial and Commercial Equipment：
- Retail Automation Equipment
- Payment Terminals
Small Smart Home Appliances：
- Small Electrical Appliances

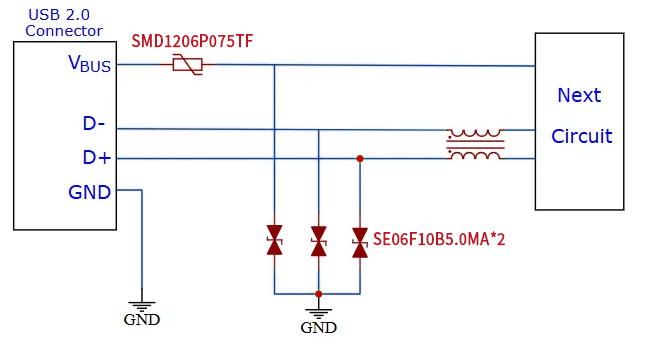

V. Common Application Circuits
Whether you are designing USB 3.0 systems, HDMI interfaces, wearable devices, or industrial communication modules, SE06F10B5.0MA-SP provides a compact and high-reliability ESD protection solution tailored for modern electronics.
👉 Explore more circuit protection solutions from Semiware and find the right replacement for your design today.
