Introduction

In electronic product design, ESD protection devices, though small in size, directly impact the long-term stable operation of the system.

With changes in the supply chain, fluctuations in delivery times, and the need for project cost optimization, engineers often need to find alternatives to ESD devices. For example, the Nexperia PESD5V0S1UL, as a small 5V single-channel ESD protection device, is widely used in various interface protection designs.

So, can the Semiware SE10F35U5.0A serve as an alternative to the PESD5V0S1UL? This article will analyze this from the perspectives of key parameters and practical applications.

Alternative to PESD5V0S1UL: How Does the SE10F35U5.0A Meet 5V ESD Protection Requirements?-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

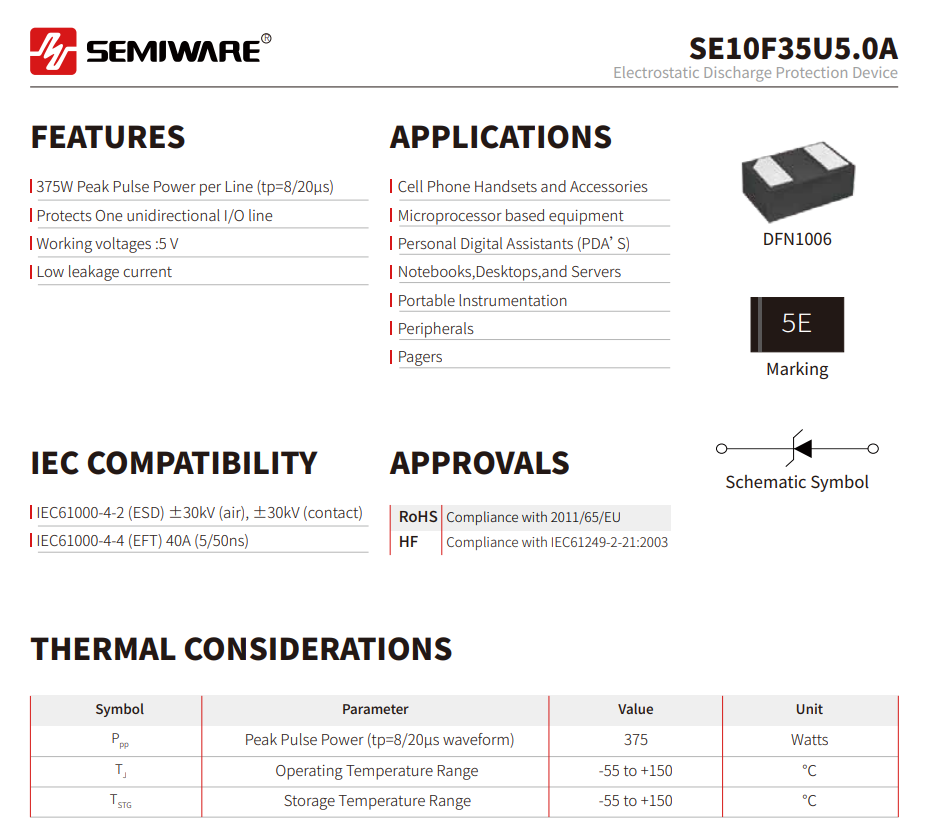

I. Main Features of the SE10F35U5.0A

The Semiware SE10F35U5.0A is a unidirectional, ESD protection diode">5V ESD protection diode, using a DFN1006-2L ultra-small package design.

Key features include:

  • 5V operating voltage (VRWM), suitable for common 5V signal protection applications;
  • ±30kV IEC61000-4-2 contact discharge and air discharge capability, meeting stringent ESD protection requirements;
  • 25A peak pulse current capability (IPP), providing higher transient impact withstand capability;
  • Low clamping voltage design (VC ≤15V), helping to reduce voltage stress on sensitive chips during ESD events;
  • Fast response time (ns-level), enabling rapid conduction and discharge of electrostatic energy;
  • Low leakage current characteristics, reducing the impact on system power consumption under normal operating conditions;
  • DFN1006-2L small package, suitable for high-density PCB layout designs.
Alternative to PESD5V0S1UL: How Does the SE10F35U5.0A Meet 5V ESD Protection Requirements?-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

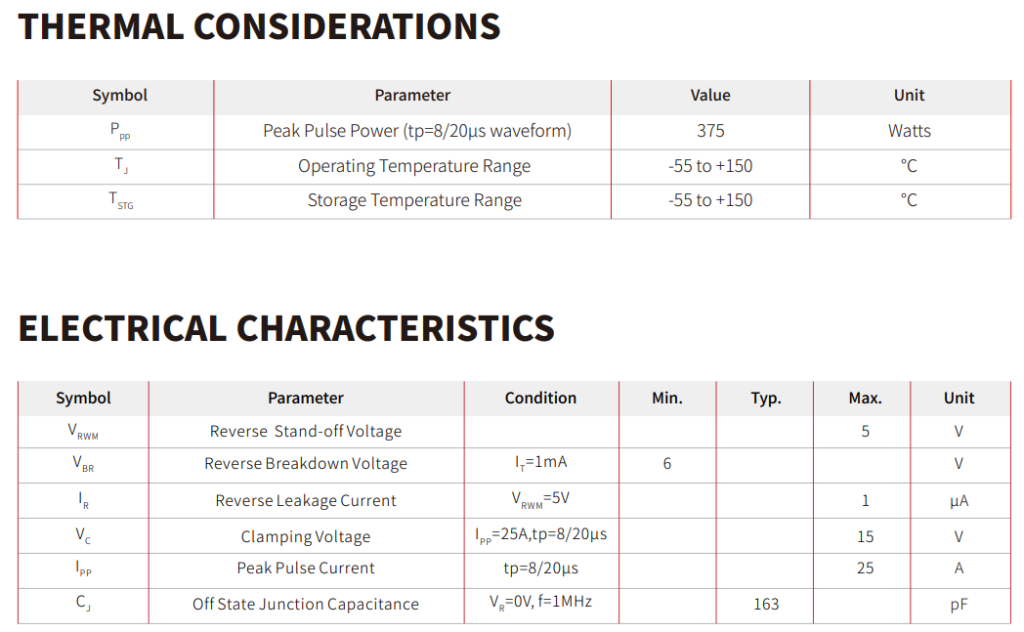

II. PESD5V0S1UL vs SE10F35U5.0A Parameter Comparison

ParameterSE10F35U5.0APESD5V0S1UL
VRWM5V5V
PolarityUnidirectionalUnidirectional
PackageDFN1006-2LDFN1006-2L
ESD Capability±30kV±30kV
Peak Pulse Power350W150W
Peak Pulse Current25A15A
Clamping Voltage15V20V
Leakage Current (max)1μA1μA
Capacitance (type)163152

Alternative Analysis:

✅ Voltage Rating and Package Compatibility

  • 5V Operating Voltage ESD Protection Device
  • Single-channel Structure
  • Ultra-small Package Product

✅ SE10F35U5.0A Offers Higher Surge Withstand Capacity, Enhancing System Protection Margin

The core function of ESD protection devices is to quickly dissipate energy during transient impacts, reducing the voltage entering the main chip.

SE10F35U5.0A features:

  • Higher Peak Pulse Power
  • Higher Peak Pulse Current Capacity

✅ Lower Clamping Voltage, Helping to Reduce Stress on Subsequent ICs

✅ Similar Capacitor Parameters

III. SE10F35U5.0A Applications

  • Cell Phone Handsets and Accessories
  • Microprocessor based equipment
  • Personal Digital Assistants (PDA’S)
  • Notebooks,Desktops,and Servers
  • Audio and video equipment
  • Portable lnstrumentation
  • Computers and Peripherals
  • Pagers

Summary

For design projects seeking an alternative to the PESD5V0S1UL, or looking to improve ESD protection reliability, the SE10F35U5.0A is a worthwhile option to evaluate.

Semiware continues to provide highly reliable ESD protection solutions covering consumer electronics, industrial control, smart devices, and various interface protection applications. For further confirmation of device compatibility, sample requests, or technical selection support, please contact our engineering team.
