Statistics indicate that over 60% of field repair cases for Set-Top Boxes (STBs) are attributed to transient overvoltage events occurring at the interface ports.
With the widespread adoption of smart TVs and IP-based STBs, the Set-Top Box has evolved into a complex system that integrates high-speed communication, audio-video processing, and multi-interface interaction. Consequently, establishing an efficient and reliable protection framework during the circuit design phase has become a critical factor in extending product lifespan and enhancing user experience.
I. Primary Sources of ESD and Surge Risks in Set-Top Boxes
Coaxial Interface: Connects to cable TV networks or antennas; highly susceptible to lightning-induced surges and high-voltage transients introduced via long-distance transmission lines.
RJ45 Ethernet Interface: Exposed to external network environments; vulnerable to lightning strikes, power-line coupling, and electrostatic interference—risks are particularly elevated in outdoor cabling scenarios.
USB Interface: Involves frequent connection and disconnection of peripherals by users; Human Body Model (HBM) electrostatic discharge—which can exceed ±8kV—can easily intrude through the interface and damage the main control chip.
HDMI Interface: High-speed differential signal pairs are extremely sensitive to parasitic capacitance; traditional protection devices can compromise signal integrity, while the interface also faces ESD threats associated with hot-plugging.
II. Design Principles for STB Interface-Level Protection
Designers typically adhere to a "Three-Tier Protection Architecture":
1. Surge Diversion (GDT / TVS / Thyristor) - Rapidly dissipates high-energy transients
2. ESD Clamping (Low-Capacitance TVS Diode) - Protects the chip's I/O pins from dielectric breakdown
3. System Coordination (Layout + Grounding) - Minimizes impedance within the return current path
III. Detailed Overview of Semiware’s STB Protection Solutions
Leveraging over a decade of industry experience—and taking into account the unique electrical characteristics and protection requirements of various interfaces—Semiware has meticulously engineered a protection architecture characterized by its layered structure, graded protection levels, low capacitance, and exceptional reliability.
1️⃣ Coaxial Interface Protection: Gas Discharge Tube (GDT) + Low-Capacitance ESD Diode Combination
1. SG4532B090 Gas Discharge Tube:
- 90V breakdown voltage
- 2kA surge absorption capability
- Compact 4.5 × 3.2 × 2.7mm package size, effectively dissipating high currents induced by lightning strikes.
2. SE3D35B3.3MA / SE3D35B5.0MA Low-Capacitance ESD Diodes:
- Capacitance as low as 0.6pF ~ 1.5pF
- ±30kV contact/air discharge protection
- Ultra-compact SOD-323 package, ideal for high-speed signal paths without compromising RF performance.
👉 Advantages: Two-stage protection—the GDT first dissipates high-energy surges, followed by the ESD diode clamping the residual voltage, thereby balancing voltage withstand capability with signal integrity.
2️⃣ RJ45 Interface Protection: Multi-Stage Coordination to Handle Complex Interference
1. SG3225B800 Gas Discharge Tube (GDT):
- 800V High Breakdown Voltage
- 1kA Surge Capability
- 0.5pF Ultra-low Capacitance
Suitable for lightning surge protection in PoE or long-distance Ethernet cable applications.
2. SE3D35B3.3MA Low-Capacitance ESD Diode:
- Used for fine-grained protection of differential signal lines to prevent electrostatic coupling.
3. SESRV05-4A TVS Array:
- SESRV05-4A TVS Array:
- 5V Operating Voltage
- 0.8pF Low Capacitance
- ±15kV Protection
- SOT-23-6L package
Suitable for integrated protection of multiple signal lines.
3. STB100B58 / STB100B400 High-Reliability Thyristors:
- Designed for 58V and 400V systems, respectively
- 6kV ESD Withstand Capability
- 100A Surge Capability
- SMB package
Providing robust overvoltage clamping.
👉 Advantages: Addressing the diverse scenarios associated with RJ45 interfaces—including PoE power supply, data communication, and shield grounding—Semiware offers a comprehensive, multi-dimensional protection solution covering both signal lines and power lines. In particular, the thyristor-based solution demonstrates exceptional stability and longevity in high-voltage systems.
3️⃣ USB Interface Protection
SE41T06U5.0LB TVS Diode Array:
- 5V Operating Voltage
- ±20kV ESD Protection
- 2pF Low Capacitance
- Compact SOT-143 Package
👉 Advantages: A highly integrated TVS array that strikes an optimal balance between space efficiency and performance.
4️⃣ HDMI Interface Protection
1. SEULC0524PA TVS Array:
- 0.6pF ultra-low capacitance
- 5V operating voltage
- ±15kV protection
- Ultra-compact DFN2510-10L package
Specifically designed for high-speed differential pairs in HDMI 2.1 applications.
2. SESRV05-4A TVS Array:
Auxiliary protection array.
👉 Advantages: Does not interfere with high-speed signals exceeding 18Gbps, delivering truly "transparent protection" that enhances the 4K/8K Ultra-HD viewing experience.
IV. Core Advantages of Semiware Solutions
- Comprehensive Interface Coverage and Systemic Design: Semiware offers a one-stop selection process for protection components, eliminating compatibility issues associated with multi-vendor sourcing.
- Industry-Leading Low-Capacitance Technology: Many of our devices feature capacitance values below 1pF, ensuring high-speed signal integrity and making them ideal for cutting-edge applications such as 5G, 8K, and USB 3.2.
- Proven High Reliability: All devices have passed international certifications—including IEC 61000-4-2 and IEC 61000-4-5—and support a wide operating temperature range of -55°C to +125°C, enabling them to withstand harsh environments.
- Miniaturized Packaging for PCB Space Savings: Utilizing ultra-compact packages such as SOD-323, DFN2510, and SOT-23, our solutions facilitate the development of slim and lightweight set-top box designs.
- Comprehensive Technical Support: Semiware provides complete reference designs and dedicated FAE (Field Application Engineer) technical support.

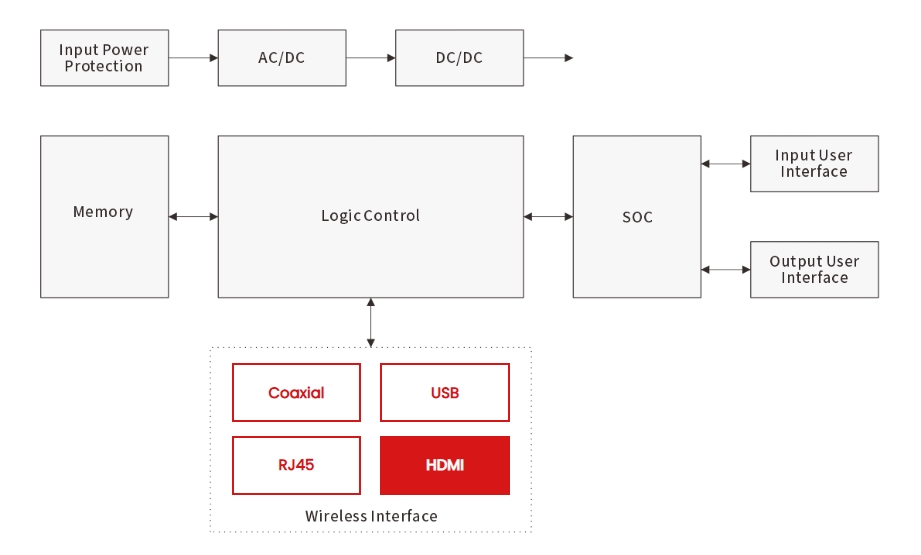

V. Circuit Diagram Reference
Semiware is more than just a component supplier; we are a dedicated technical partner in the field of circuit protection. With over a decade of deep expertise in the research and development of protection devices—including ESD suppressors, TVS diodes, GDTs, and Thyristors—Semiware has successfully delivered protection solutions to numerous global brands across various sectors, including consumer electronics (such as set-top boxes, smart gateways, and IPTV systems), as well as the automotive, telecommunications, and industrial industries.
👉 If you are working on Set-Top Box (STB) design, smart home devices, or high-speed interface protection, feel free to connect with us to explore optimized ESD and surge protection solutions tailored to your application.
