TVS Diode Array

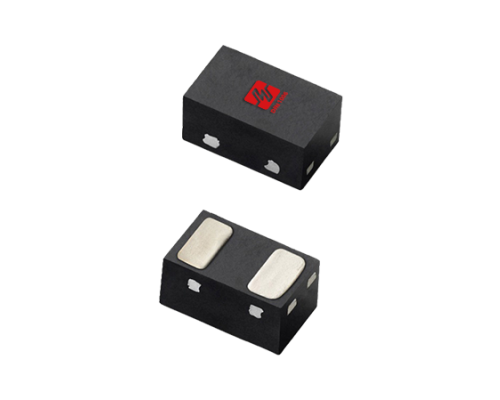

TPSE10F10B5.0MAActive

TPSE10F10B5.0MA is an automotive ESD protection diode designed for reliable protection of sensitive automotive electronics. It features a 5V working voltage, ultra-low leakage current, low capacitance, and a compact DFN1006 package. Qualified to meet AEC-Q101 requirements, this device provides robust ESD protection while preserving signal integrity in automotive interfaces and advanced electronic systems.

Datasheet Inquire Now

Electrical Parameters

Part Number TPSE10F10B5.0MA

Package DFN1006-2L

Vrwm [Max] (V) 5

Vbr [Min] (V)6

Vc@Ipp [Max] (V)25

Ipp [Max] (A)4

Vesd [Contact] (KV)±20

Vesd [Air] (KV)±20

IR [max] (uA)1

Cj [max] (pF)1

TJ (°C)-55～+150

Status Active

Product Features

AEC-Q101 qualified for automotive applications. IEC61000-4-2 ESD protection: ±20kV (air), ±20kV (contact). Low capacitance design for high-speed signal integrity. Compact DFN1006 surface mount package for space-saving applications. Ultra-low leakage current for low power consumption designs. 5V working voltage with reliable ESD protection performance.
