Standard Bidirectional Thyristor

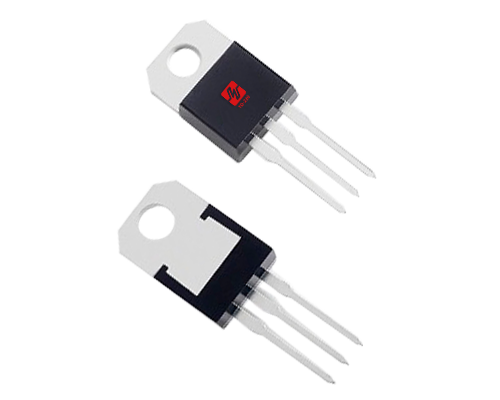

BTA12-800TWActive

The BTA12-800TW TRIAC is a high-performance semiconductor device designed for efficient AC load control in industrial and commercial applications. With a 12A current rating and 800V blocking voltage, this triac is ideal for switching high-power AC loads, including motors, heaters, and lighting systems.

Datasheet Inquire Now

Electrical Parameters

Part Number BTA12-800TW

Package TO-220A

VDRM [Min] (V)800

VRRM [Min] (V)800

IT(RMS) [Min] (A)12

ITSM [Min] (A)120

VTM [Max] (V)1.5

IGT_I [max] (mA) ≤5

IGT_II [max] (mA) ≤5

IGT_III [max] (mA) ≤5

Tj (°C) -40~+125

Status Active

Product Features

High On-State Current Low Thermal Resistance Low Gate Triggering Current Insulated Package Snubberless Design RoHS Compliant
