Four-Quadrant Bidirectional Thyristor

BT137-600DActive

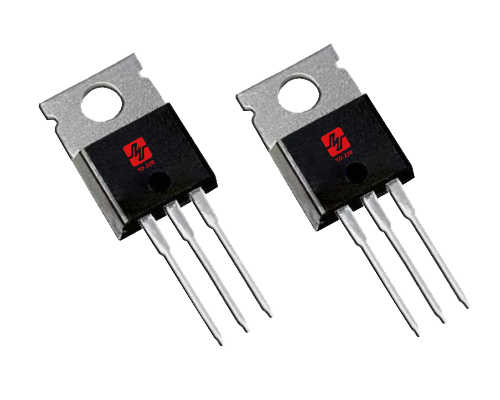

The BT137-600D is a robust 8A,600V bidirectional TRIAC in a TO-220C package,designed for efficient AC switching in medium-power applications.With high surge tolerance and reliable switching capability, it delivers reliable performance in lighting control (dimmers),motor speed regulation,fan controllers,and household appliances.

Datasheet Inquire Now

Electrical Parameters

Part Number BT137-600D

Package TO-220C

VDRM [Max] (V) 600

VRRM [Max] (V) 600

IT(RMS) [Min] (A) 8

ITSM [Min] (A) 65

VTM [Min] (V) ≤1.6

IGT_I [max] (mA) 5

IGT_II [max] (mA) 5

IGT_III [max] (mA) 5

IIGT_IV [max] (mA) 10

Tj (°C) -40~+125

Status Active

Product Features

High Current and Voltage Rating Low On-State Voltage Drop Low Gate Triggering Sensitive Gate Triggering Planar Passivated 4-Quadrant
