General-Purpose TVS Diode

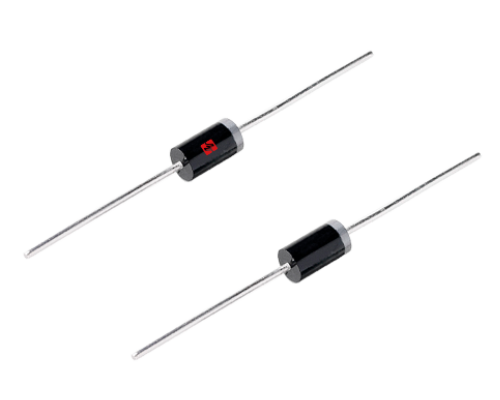

P6KE18CAActive

The P6KE18CA TVS diode is a high-performance transient voltage suppressor designed to protect sensitive electronic circuits from voltage spikes,ESD (electrostatic discharge),and surge events.With a 600W peak pulse power rating and a 18V breakdown voltage,this diode is widely used in power supplies,automotive systems,industrial equipment,and communication devices.

Datasheet Inquire Now

Electrical Parameters

Part Number P6KE18CA

Package DO-15

Polar Bi

Vrwm [Max] (V) 15.3

Vbr [Min] (V) 17.2

Vbr [Max] (V) 18.9

@ IT (mA)1

Vc@Ipp [Max] (V) 25.5

Ipp [Max] (A) 24.2

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
