General-Purpose TVS Diode

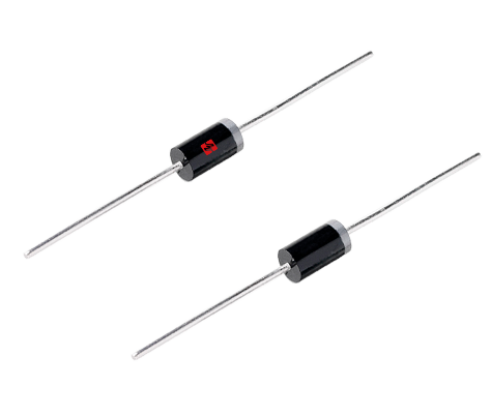

P6KE33AActive

The P6KE33A TVS diode is a high-performance transient voltage suppressor designed to protect sensitive electronic circuits from voltage spikes,ESD (electrostatic discharge),and surge events.With a 600W peak pulse power rating and a 33V breakdown voltage,this diode is widely used in power supplies,automotive systems,industrial equipment,and communication devices.

Datasheet Inquire Now

Electrical Parameters

Part Number P6KE33A

Package DO-15

Polar Uni

Vrwm [Max] (V) 28.2

Vbr [Min] (V) 31.4

Vbr [Max] (V) 34.7

@ IT (mA)1

Vc@Ipp [Max] (V) 45.7

Ipp [Max] (A) 13.3

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
