General-Purpose TVS Diode

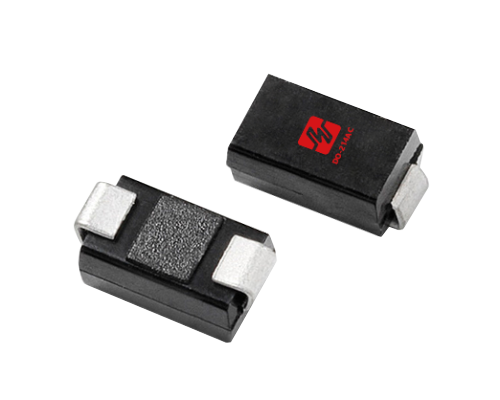

SMAJ220AActive

In modern electronic systems,surge protection is an important part of ensuring safe and stable operation of circuits.SMAJ220A is a common transient voltage suppressor diode,which is widely used in various sensitive electronic devices to protect against transient overvoltage caused by lightning strikes,electrostatic discharge (ESD),switching operations,etc.

Datasheet Inquire Now

Electrical Parameters

Part Number SMAJ220A

Package SMA

Polar Uni

Vrwm [Max] (V) 220

Vbr [Min] (V) 246

Vbr [Max] (V) 272

@ IT (mA)1

Vc@Ipp [Max] (V) 356

Ipp [Max] (A) 1.1

Ppp [Min] (W) 400

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
