General-Purpose TVS Diode

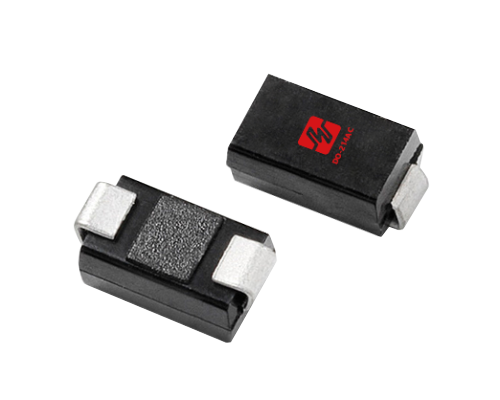

SMAJ22AActive

When speed and precision are critical,the SMAJ22A stands out with its ultra-fast response time and superior clamping performance.It reacts to voltage spikes in less than 1 nanosecond,ensuring your 22V sensitive electronic devices,such as micro-controllers,sensors,and communication interfaces are protected from ESD,lightning surges,and inductive load switching.Compliant with IEC 61249-2-21:2003 standards,it is the ideal choice for high-reliability designs.

Datasheet Inquire Now

Electrical Parameters

Part Number SMAJ22A

Package SMA

Polar Uni

Vrwm [Max] (V) 22

Vbr [Min] (V) 24.4

Vbr [Max] (V) 26.9

@ IT (mA)1

Vc@Ipp [Max] (V) 35.5

Ipp [Max] (A) 11.3

Ppp [Min] (W) 400

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
