General-Purpose TVS Diode

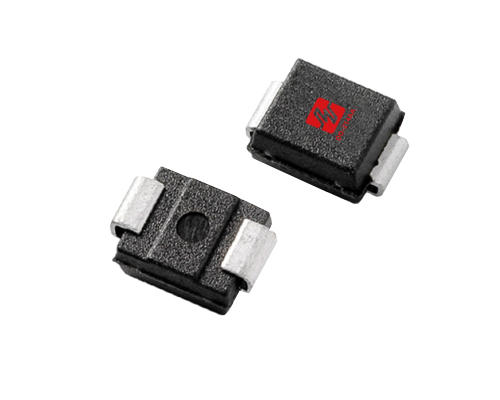

SMBJ15CAActive

SMBJ15CA TVS Diode-15V Bidirectional Surge Protection for Reliable Circuit Safety!
Protect your sensitive electronics from voltage spikes, ESD, and transient surges with the SMBJ15CA TVS diode-a high-performance, bidirectional transient voltage suppressor designed for robust over-voltage protection.

Datasheet Inquire Now

Electrical Parameters

Part Number SMBJ15CA

Package SMB

Polar Bi

Vrwm [Max] (V) 15

Vbr [Min] (V) 16.7

Vbr [Max] (V) 18.5

@ IT (mA)1

Vc@Ipp [Max] (V) 24.4

Ipp [Max] (A) 24.6

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
