General-Purpose TVS Diode

SMBJ26CAActive

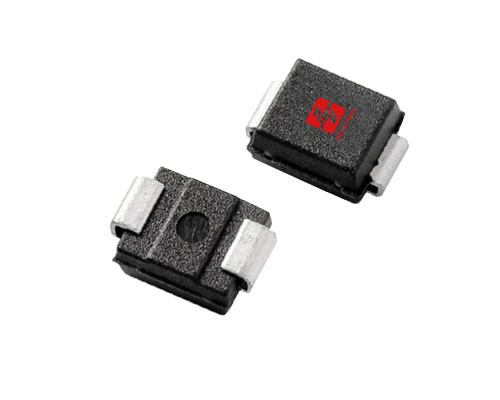

SMBJ26CA TVS Diode - Industrial-grade transient voltage suppression expert
SMBJ26CA provides a 26V precise protection barrier for the circuit. 600W high surge absorption capacity, bidirectional protection and nanosecond response speed can effectively resist transient threats such as lightning strikes and EFT. It adopts standard SMB package and is compatible with efficient SMT technology to meet the needs of high-reliability scenarios such as industrial automation, communication base stations, and power systems.

Datasheet Inquire Now

Electrical Parameters

Part Number SMBJ26CA

Package SMB

Polar Bi

Vrwm [Max] (V) 26

Vbr [Min] (V) 28.9

Vbr [Max] (V) 31.9

@ IT (mA)1

Vc@Ipp [Max] (V) 42.1

Ipp [Max] (A) 14.3

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
