General-Purpose TVS Diode

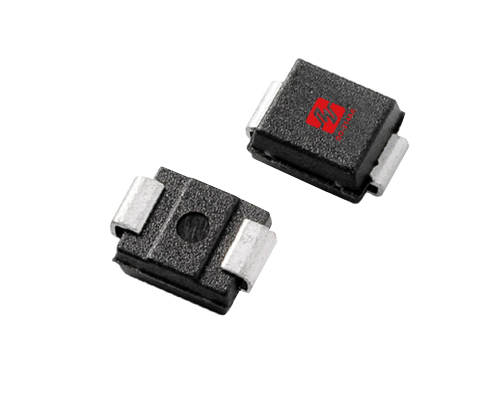

SMBJ28AActive

In modern electronic systems,surge protection is an important part of ensuring safe and stable operation of circuits.SMBJ28A is a common transient voltage suppressor diode,which is widely used in various sensitive electronic devices to protect against transient overvoltage caused by lightning strikes,electrostatic discharge (ESD),switching operations,etc.

Datasheet Inquire Now

Electrical Parameters

Part Number SMBJ28A

Package SMB

Polar Uni

Vrwm [Max] (V) 28

Vbr [Min] (V) 31.1

Vbr [Max] (V) 34.4

@ IT (mA)1

Vc@Ipp [Max] (V) 45.4

Ipp [Max] (A) 13.3

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
