General-Purpose TVS Diode

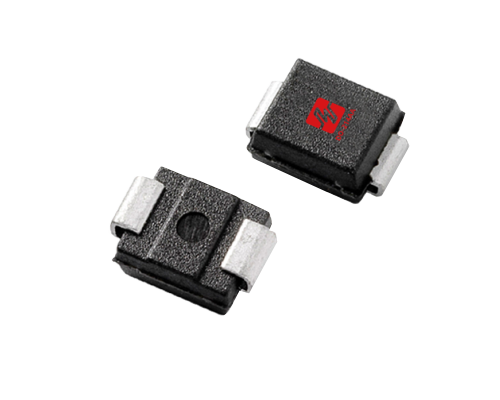

SMBJ64CAActive

In modern electronic devices,transient voltage suppression diodes are key components for protecting sensitive circuits from voltage spikes and electrostatic discharge.SMBJ64CA provides a 64V precise protection barrier for the circuit.600W high surge absorption capacity, bidirectional protection and nanosecond response speed can effectively resist transient threats such as lightning strikes and EFT.

Datasheet Inquire Now

Electrical Parameters

Part Number SMBJ64CA

Package SMB

Polar Bi

Vrwm [Max] (V) 64

Vbr [Min] (V) 71.1

Vbr [Max] (V) 78.6

@ IT (mA)1

Vc@Ipp [Max] (V) 103

Ipp [Max] (A) 5.9

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
