General-Purpose TVS Diode

SMCJ170AActive

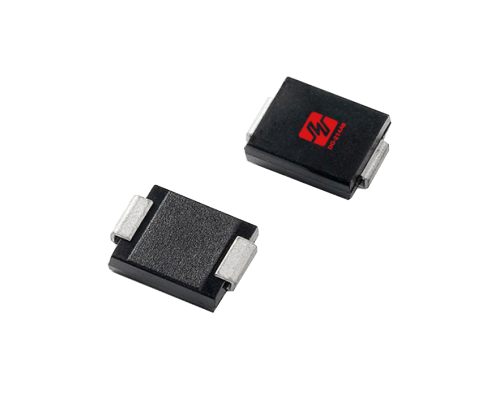

In modern electronic systems,surge protection is an important part of ensuring safe and stable operation of circuits.The SMCJ170A is a high-power transient voltage suppressor diode housed in a surface-mount SMC (DO-214AB) package.It is widely used in various sensitive electronic devices to protect against transient over-voltage caused by lightning strikes, electrostatic discharge (ESD),switching operations,etc.

Datasheet Inquire Now

Electrical Parameters

Part Number SMCJ170A

Package SMC

Polar Uni

Vrwm [Max] (V) 170

Vbr [Min] (V) 189

Vbr [Max] (V) 209

@ IT (mA)1

Vc@Ipp [Max] (V) 275

Ipp [Max] (A) 5.5

Ppp [Min] (W) 1500

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

1500 Watt Peak Pulse Power Capability Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package SMAJ170A TVS Diode RoHS Compliant
