General-Purpose TVS Diode

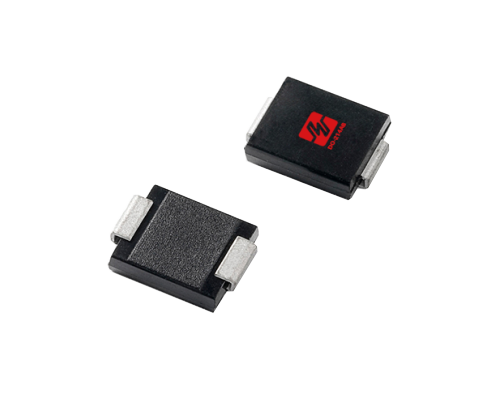

SMCJ58CAActive

The SMCJ58CA is a bidirectional TVS diode designed for surge and ESD protection.It features bidirectional clamping, high power loss, and fast response, making it ideal for applications such as power supplies, consumer electronics, and communication systems.

Datasheet Inquire Now

Electrical Parameters

Part Number SMCJ58CA

Package SMC

Polar Bi

Vrwm [Max] (V) 58

Vbr [Min] (V) 64.4

Vbr [Max] (V) 71.2

@ IT (mA)1

Vc@Ipp [Max] (V) 93.6

Ipp [Max] (A) 16.1

Ppp [Min] (W) 1500

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Low Incremental Surge Resistance Excellent Clamping Capability Fast Response Time Low Leakage Current Low Profile Package RoHS Compliant
