Zener Diode

BZT52B5V1Active

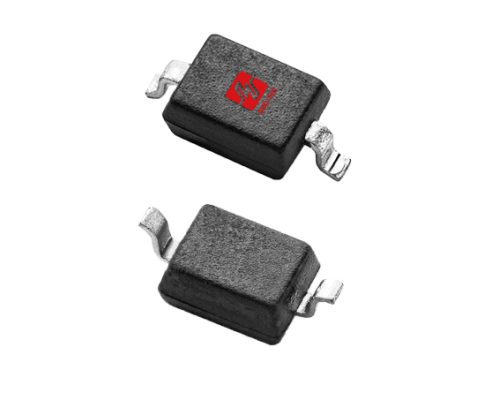

The BZT52B5V1 series Zener diodes, packaged in a SOD-123 package, offer voltage regulation; even in reverse breakdown mode, the voltage across them remains essentially constant. Leveraging this property, they are commonly used in voltage regulator

Datasheet Inquire Now

Electrical Parameters

Part Number BZT52B5V1

Package SOD-123

AEC-Q101 No

VZ [Nom] (V) 5.1

VZ [Min] (V) 5

VZ [Max] (V) 5.2

IZT (mA) 5

PD [Max] (W) 0.5

VF [Max] (V) 0.9

IR [max] (uA) 0.1

TJ (°C) -55~+150

Status Active

Product Features

Utilizing glass passivation technology, it features low leakage current, surge resistance, and high reliability Low parasitic inductance, suitable for high-frequency power supply clamping Excellent anti-static capability, power circuit protection against voltage spikes Fast response speed Precise and reliable clamping voltage RoHS compliant
