Voltage Regulator Diode

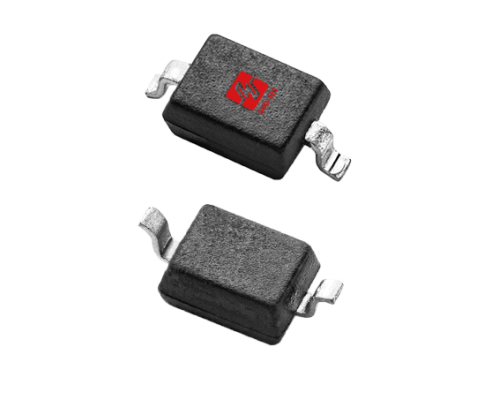

BZT52C3V3Active

BZT52C3V3 Zener Diode provides precise 3.3V voltage regulation by maintaining a stable reverse breakdown voltage,protecting circuits from overvoltage and voltage fluctuations. It is ideal for reference voltage sources,low-power power supplies,microcontroller circuits,and sensor signal conditioning applications.

Datasheet Inquire Now

Electrical Parameters

Part Number BZT52C3V3

Package SOD-123

AEC-Q101 Qualified No

VZ [Nom] (V) 3.3

VZ [Min] (V) 3.1

VZ [Max] (V) 3.5

IZT (mA) 5

PD [Max] (W) 0.5

VF [Max] (V) 0.9

IR [max] (uA) 5

TJ (°C) -65~+165

Status Active

Product Features

Planar Die Construction 500 mW Power Dissipation on Ceramic PCB Operating Temperature Range: -65°C to +165°C Ideally Suited for Automated Assembly Processes Low Leakage Current BZT52C3V3 RoHS Compliant
