Zener Diode

BZT52C4V3Active

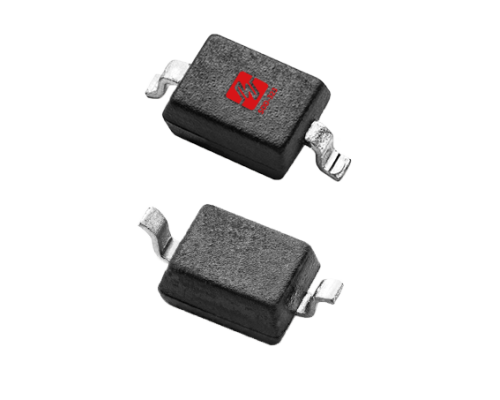

The BZT52C4V3 is a 4.3V Zener diode in a compact SOD-123 surface-mount package. It provides reliable voltage regulation and transient protection for a wide range of applications,including consumer electronics,power management,and portable devices.

Datasheet Inquire Now

Electrical Parameters

Part Number BZT52C4V3

Package SOD-123

AEC-Q101 Qualified No

VZ [Nom] (V) 4.3

VZ [Min] (V) 4.0

VZ [Max] (V) 4.6

IZT (mA) 5

PD [Max] (W) 0.5

VF [Max] (V) 0.9

IR [max] (uA) 3

TJ (°C) -65~+165

Status Active

Product Features

BZT52C4V3 Sharp Zener voltage breakdown for precise regulation. Low leakage current ensures high efficiency operation. 500mW power dissipation on ceramic PCB substrate. General purpose, medium current stable performance. BZT52C4V3 Suitable for automated assembly and SMT processing. RoHS and REACH compliant, conflict minerals safe.
