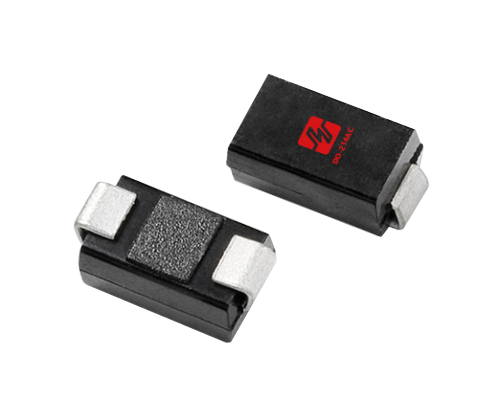

Rectifier Diode

GS1MAActive

GS1M is a rectifier diode designed for efficient rectification in power supplies, adapters, and converters. It offers high reverse voltage capability up to 1000V, low forward voltage drop, and fast reverse recovery time, ensuring stable performance and improved energy efficiency in compact circuit designs.

Datasheet Inquire Now

Electrical Parameters

Part Number GS1MA

Package SMA

AEC-Q101 Qualified No

VRRM [Max] (V) 1000

VRMS [Max] (V) 700

IF(AV) [Max] (A) 1

IFSM [Max] (A) 30

VF [Max] (V) 1.1

Trr [Max] (ns) 1500

IR [max] (mA) 1

Cj [Typ] (PF) 12

TJ (°C) -55~+150

Status Active

Product Features

High Reverse Voltage Up To 1000V Fast Recovery Time Low Forward Voltage Drop Low Leakage Current High Surge Current Capability GS1M Compact SMA Package
