Rectifier Diode

TMBF310Active

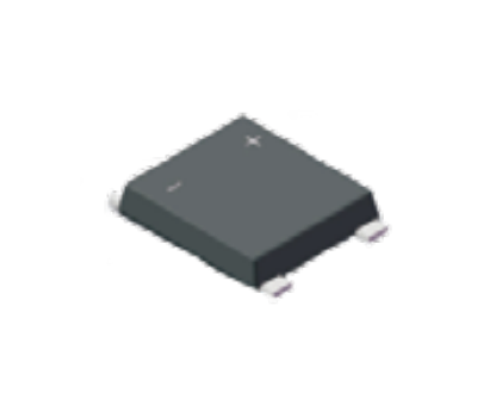

The TMBF310 is a 3A surface-mount rectifier designed specifically for AC-DC conversion in electronic power circuits. Featuring a maximum repetitive peak reverse voltage of 1000V and a peak forward surge current rating of 80A, it is widely used in fields such as industrial control, network communications, security and surveillance, and consumer electronics.

Datasheet Inquire Now

Electrical Parameters

Part Number TMBF310

Package UMSB

AEC-Q101 No

VRRM [Max] (V) 1000

VRMS [Max] (V) 700

IF(AV) [Max] (A) 3

IFSM [Max] (A) 80

VF [Max] (V) 1.05

Trr [Max] (ns) -

IR [max] (mA) 0.005

Cj [Typ] (PF) 35

TJ (°C) -55~+150

Status Active

Product Features

1000V maximum repetitive peak reverse voltage. 3A average forward rectified current. 80A peak forward surge curren. Compact UMSB package Low forward voltage drop. Wide operating temperature range.
