Schottky Diode

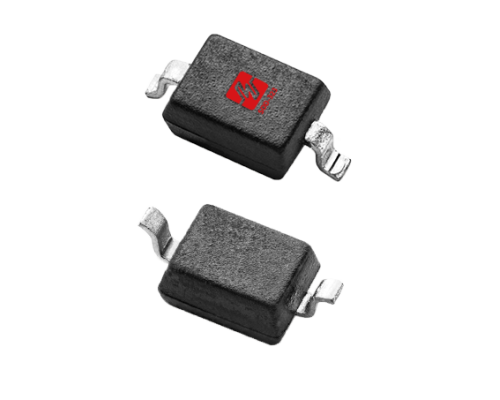

BAT42WSActive

The BAT42WS is a Schottky barrier diode designed for high-efficiency switching applications. It features a low forward voltage drop and fast switching capabilities, making it ideal for high-frequency circuits, power rectification, and signal clamping.

Datasheet Inquire Now

Electrical Parameters

Part Number BAT42WS

Package SOD-323

AEC-Q101 Qualified No

VRRM [Max] (V) 30

VRMS [Max] (V) 21

IO [Max] (A) -

IFSM [Max] (A) 4

VF [Max] (V) 1

IR [max] (mA) 0.0005

TJ (°C) 125

Status Active

Product Features

Low Forward Voltage Drop Fast Switching Speed High Surge Capability Low Power Dissipation Compact SOD-323 Package RoHS Compliant
