Schottky Diode

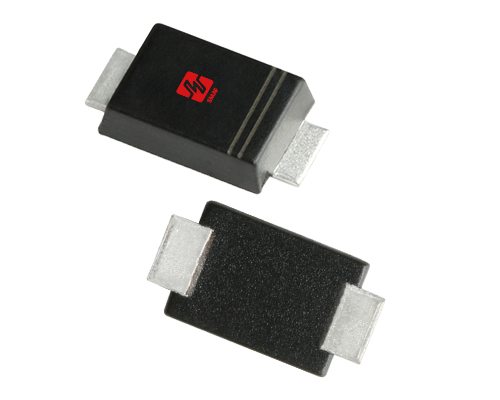

SS24AFActive

The SS24AF is a 2A, 40V Schottky rectifier diode designed for high-efficiency applications where low forward voltage drop and fast switching speed are essential. Encapsulated in a SMAF surface-mount package, SS24AF offers excellent thermal performance and reliability under continuous operation. With its low power loss and high surge capability, it is widely used in power supplies, DC-DC converters, freewheeling diodes, and reverse polarity protection circuits.

Datasheet Inquire Now

Electrical Parameters

Part Number SS24AF

Package SMAF

AEC-Q101 Qualified No

VRRM [Max] (V) 40

VRMS [Max] (V) 28

IO [Max] (A) 2

IFSM [Max] (A) 50

VF [Max] (V) 0.55

IR [max] (mA) 0.5

TJ (°C) -55~+125

Status Active

Product Features

High Current Handling Low Power Loss Fast Switching High Surge Capability Low Reverse Leakage Current RoHS Compliant
