Schottky Diode

SS320AActive

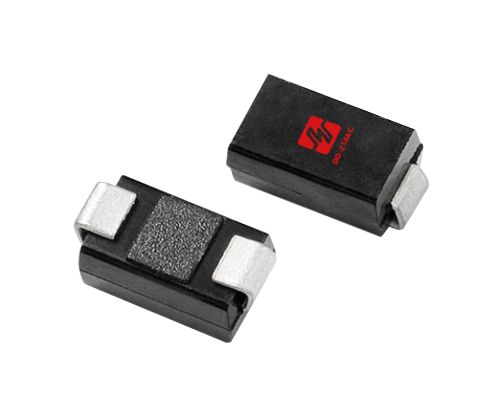

The SS320A is a 3A, 200V Schottky rectifier diode designed for high-efficiency applications where low forward voltage drop and fast switching speed are essential. Encapsulated in a DO-214AC surface-mount package, SS320A offers excellent thermal performance and reliability under continuous operation. With its low power loss and high surge capability, it is widely used in power supplies, DC-DC converters, freewheeling diodes, and reverse polarity protection circuits.

Datasheet Inquire Now

Electrical Parameters

Part Number SS320A

Package SMA

AEC-Q101 Qualified No

VRRM [Max] (V) 200

VRMS [Max] (V) 140

IO [Max] (A) 3

IFSM [Max] (A) 70

VF [Max] (V) 0.95

IR [max] (mA) 0.5

TJ (°C) -55~+150

Status Active

Product Features

High Current Handling Low Power Loss Fast Switching High Surge Capability Low Reverse Leakage Current RoHS Compliant
