Schottky Diode

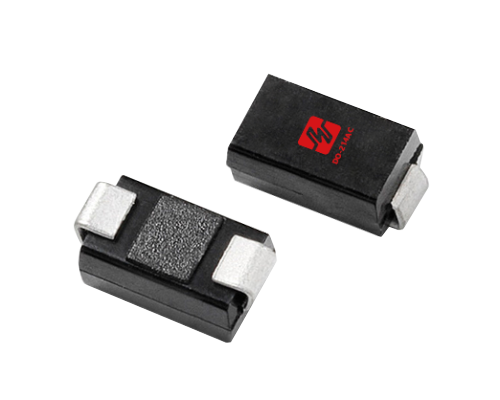

SS510AActive

The SS510A is a 5A, 100V Schottky rectifier diode designed for high-efficiency applications where low forward voltage drop and fast switching speed are essential. Encapsulated in a DO-214AC surface-mount package, SS510A offers excellent thermal performance and reliability under continuous operation. With its low power loss and high surge capability, it is widely used in power supplies, DC-DC converters, freewheeling diodes, and reverse polarity protection circuits.

Datasheet Inquire Now

Electrical Parameters

Part Number SS510A

Package SMA

AEC-Q101 Qualified No

VRRM [Max] (V) 100

VRMS [Max] (V) 70

IO [Max] (A) 5

IFSM [Max] (A) 100

VF [Max] (V) 0.85

IR [max] (mA) 0.1

TJ (°C) -55~+175

Status Active

Product Features

High Current Handling Low Power Loss Fast Switching High Surge Capability Low Reverse Leakage Current RoHS Compliant
