Small Signal Mosfet

SNM3325QActive

SNM 3325Q series Dual N-channel MOSFET packaged in DFN3×3-8L features low on-resistance. It is particularly suitable for applications in fields such as network communication security monitoring laptops mobile phones TWS Bluetooth headphones smart lighting industrial power supplies, etc. It enables fast switching and low power loss within small surface-mount packages.

Datasheet Inquire Now

Electrical Parameters

Part Number SNM3325Q

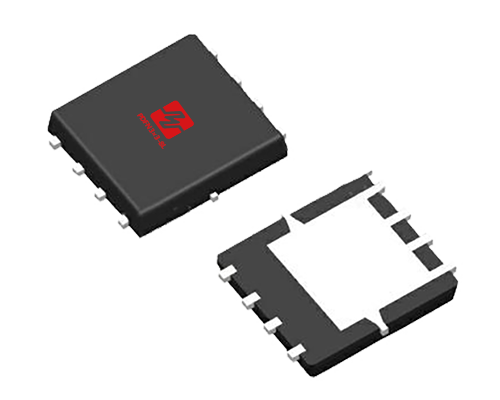

Package DFN 3×3-8L

AEC-Q101 QualifiedNo

Channel Type N+N

With ESD No

VDS [Max] (V) 16

VGS [Max] (V) ±10

ID [Max] (A) 50

RDS(ON)@10V
[Typ] (mΩ) -

RDS(ON)@10V
[Max] (mΩ) -

RDS(ON)@4.5V
[Typ] (mΩ) 3.3

RDS(ON)@4.5V
[Max] (mΩ) 3.8

RDS(ON)@2.5V
[Typ] (mΩ) 4.5

RDS(ON)@2.5V
[Max] (mΩ) 5.5

PD [Max] (W) 7.8

TJ (°C) 150

Status Active

Product Features

Surface-mounted package Advanced trench cell design MB and NB
