Standard Unidirectional Thyristor

TYN1225Active

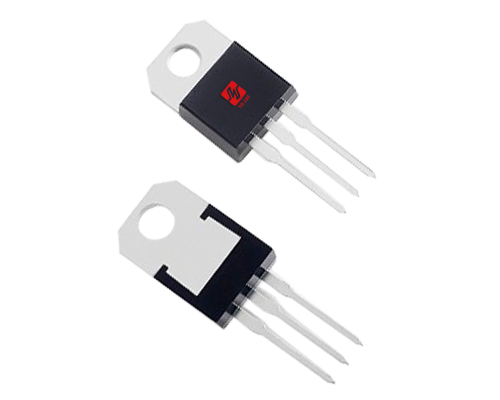

The TYN1225 is a 1200V,25A silicon-controlled rectifier with a standard TO-220A package ,designed for medium-power switching applications. It features reliable triggering, robust surge current capabilities, and is widely used in AC switching, light dimmers, motor control, heating regulation systems, and other industrial or consumer power electronics.

Datasheet Inquire Now

Electrical Parameters

Part Number TYN1225

PackageTO-220A

VDRM [Min] (V)1200

VRRM [Min] (V)1200

IT(RMS) [Min] (A)25

ITSM [Min] (A) 300

VTM [Min] (V) ≤1.55

IGT [Max] (mA) ≤40

Tj (°C) -40~+125

Status Active

Product Features

High Voltage Capability Low Gate Current Robust Switching Performance Standard TO-220A Package Cost-Effective Reliability RoHS Compliant
