TVS Diode Array

GBLC03CIActive

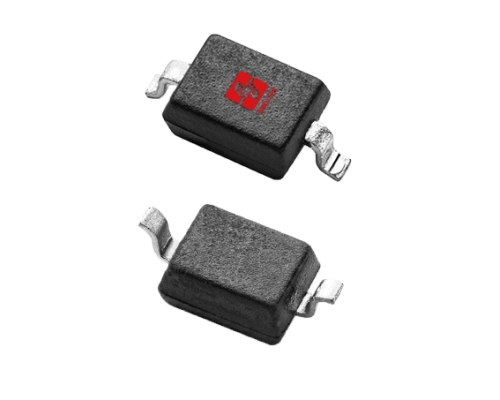

The GBLC03CI TVS diode array delivers powerful transient voltage suppression in an ultra-small SOD-323 package,making it the ideal solution for space-constrained,high-performance electronics.With up to 350W peak pulse power,ultra-fast response time,and low clamping voltage,this device ensures your sensitive components stay safe from ESD strikes,surges,and transients.Ideal for applications such as USB ports,RS-485 interfaces,mobile devices,and automotive electronics.

Datasheet Inquire Now

Electrical Parameters

Part Number GBLC03CI

Package SOD-323

Vrwm [Max] (V) 3.3

Vbr [Min] (V)3.6

Vc@Ipp [Max] (V)16

Ipp [Max] (A)20

Vesd [Contact] (KV)±30

Vesd [Air] (KV)±30

IR [max] (uA)0.1

Cj [max] (pF)0.6

TJ (°C)-55～+150

Status Active

Product Features

Low Clamping Voltage Low Ieakage current Fast Response Time 350W Peak Pulse Power Ultra Low Capacitance IEC 61000-4-2 Compliance
