TVS Diode Array

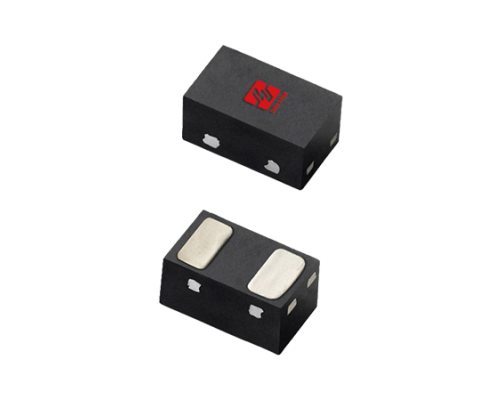

SE10F10B5.0AActive

The SE10F10B5.0A is an ultra-small bidirectional ESD protection device in DFN1006-2L package, designed to provide reliable transient voltage protection for 5V systems. Its low capacitance ensures high-speed signal integrity, while its 8A peak pulse current capability can effectively suppress threats such as ESD, EFT, lightning strikes and cable discharge (CDE), making it suitable for mobile devices, consumer electronics and communication systems.

Datasheet Inquire Now

Electrical Parameters

Part Number SE10F10B5.0A

Package DFN1006-2L

Vrwm [Max] (V) 5

Vbr [Min] (V)5.6

Vc@Ipp [Max] (V)10

Ipp [Max] (A)8

Vesd [Contact] (KV)±25

Vesd [Air] (KV)±25

IR [max] (uA)0.1

Cj [max] (pF)15

TJ (°C)-55～+125

Status Active

Product Features

Low Clamping Voltage Low Leakage Current Protects One I/O Line IEC61000-4-4 (EFT) 40A DFN1006-2L Ultra Small Package ROHS Compliant
