TVS Diode Array

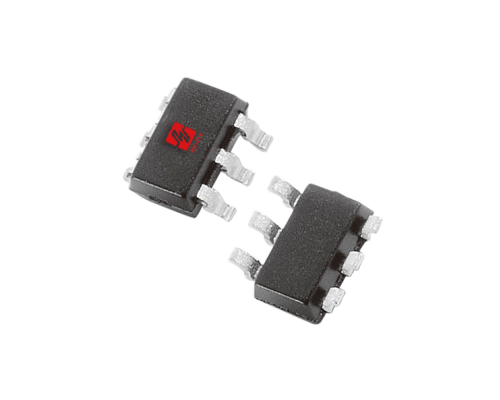

SRV05-4Active

In today's era of high-speed data transmission, electrostatic discharge (ESD) and voltage transients pose constant threats to your electronics. The SRV05-4 TVS diode is your ultimate circuit protection solution!

🔹 Ultra-Low Capacitance (0.6pF) – Perfect for USB 3.0, HDMI and other high-speed signal lines without compromising data integrity.
🔹 ±15kV ESD Protection – Meets IEC 61000-4-2 highest standards.
🔹 5A Surge Current Capability – Effectively shields against lightning strikes and power fluctuations.
🔹 Compact SOT-23-6L Package – Saves PCB space for modern, miniaturized electronic designs.

Datasheet Inquire Now

Electrical Parameters

Part Number SRV05-4

Package SOT-23-6L

Vrwm [Max] (V) 5

Vbr [Min] (V)6

Vc@Ipp [Max] (V)17.5

Ipp [Max] (A)5

Vesd [Contact] (KV)±8

Vesd [Air] (KV)±15

IR [max] (uA)1

Cj [max] (pF)0.6

TJ (°C)-55～+150

Status Active

Product Features

Low Leakage Current Low Clamping Voltage Fast Response Time 4-Channel TVS Diode Ultra-low Capacitance RoHS Compliant
