General-Purpose TVS Diode

P6KE56AActive

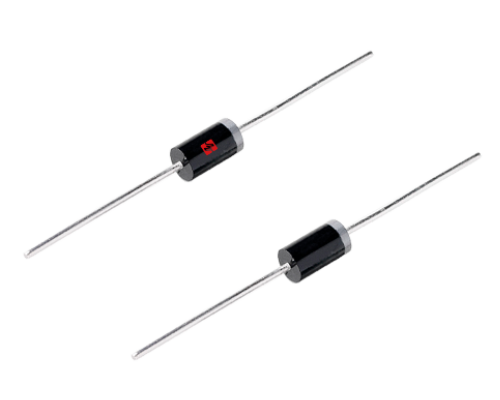

The P6KE56A is a 600W unidirectional TVS diode designed to protect electronic circuits from voltage transients. With a reverse standoff voltage of 47.8V and a maximum clamping voltage of 77V, the device limits transient voltages before they can damage sensitive components. Housed in a DO-15 package, the P6KE56A is suitable for use in power supplies, industrial control circuits, and communication equipment.

Datasheet Inquire Now

Electrical Parameters

Part Number P6KE56A

Package DO-15

Polar Uni

Vrwm [Max] (V) 47.8

Vbr [Min] (V) 53.2

Vbr [Max] (V) 58.8

@ IT (mA)1

Vc@Ipp [Max] (V) 77

Ipp [Max] (A) 7.9

Ppp [Min] (W) 600

IR [Max] (uA)1

Tj (°C) -55~+150

Status Active

Product Features

Halogen-Free and RoHS compliant. 600W peak pulse power capability on 10/1000us waveform. Fast response time:typically less than 1.0ps from 0 Volts to VBR Min. Excellent clamping capability. Typical IR less than 1uA above 12V. Glass passivated chip junction in DO-15 Package.
