I. Miniaturized ESD Protection for Mobile Devices and High-Speed Digital Interfaces
With the rapid development of portable electronic devices, smart terminals, and low-power chips, system operating voltages are constantly decreasing. From traditional 5V and 3.3V power supplies, more and more MCUs, SoCs, and high-speed interfaces are now using 2.5V or even lower voltages.
With the rapid development of portable electronic devices, smart terminals, and low-power chips, system operating voltages are constantly decreasing. From traditional 5V and 3.3V power supplies, more and more MCUs, SoCs, and high-speed interfaces are now using 2.5V or even lower voltages.
II. Addressing the Challenges

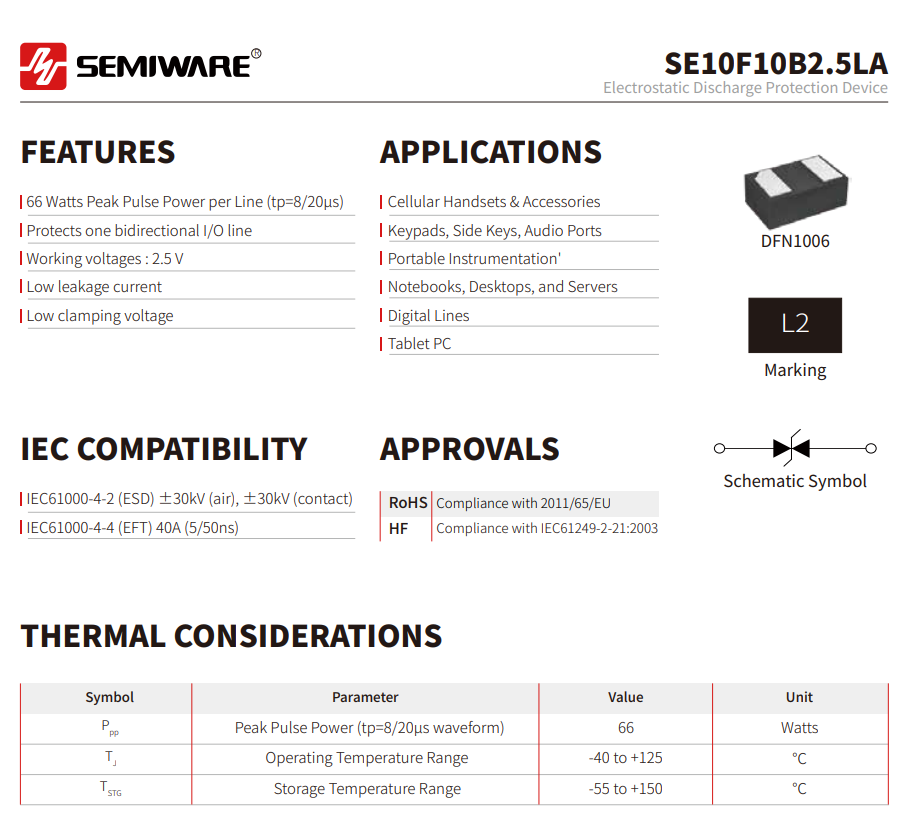

Semiware's SE10F10B2.5LA is an ESD protection diode specifically designed for low-voltage interfaces. It uses an ultra-small DFN1006-2L package, operates at 2.5V, and can be used for the protection of mobile phones, tablets, portable devices, and various digital signal lines.
In practical project development, the SE10F10B2.5LA can serve as an alternative to the Semtech UCLAMP2511T, providing engineers with an ESD protection solution that balances performance and PCB space.
III. Key Features of the SE10F10B2.5LA
3.1 Low Operating Voltage of 2.5V
- Suitable for low-voltage power supply systems and sensitive digital interfaces.
3.2 Ultra-small DFN1006-2L Package
- Saves PCB space, suitable for mobile phones, wearable devices, and portable electronic products.
3.3 High ESD Protection
- Complies with IEC61000-4-2 standards, ±30kV air discharge, ±30kV contact discharge.
3.4 Low Leakage Current
- Maximum leakage current is only 0.1μA, helping to reduce system power consumption.
3.5 Low Capacitance Design
- Typical junction capacitance of 6pF, suitable for digital signal interface protection.
3.6 Low Clamping Voltage
- Provides a typical clamping voltage of 12V under 8/20μs surge test conditions.
IV. SE10F10B2.5LA vs UCLAMP2511T.TCT Parameter Comparison

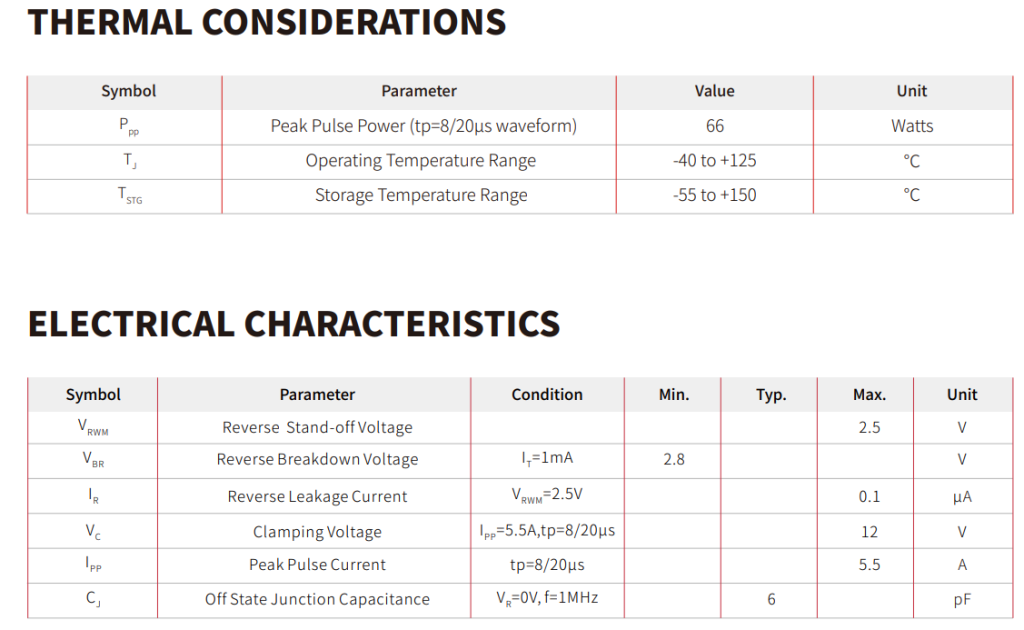

| Parameter | SE10F10B2.5LA | UCLAMP2511T |
| VRWM | 2.5V | 2.5V |
| Clamping Voltage (VC) | 12 V @ IPP=5.5 A | 8 V @ IPP=5 A |
| Peak Pulse Current (IPP) | 5.5 A | 5 A |
| Leakage Current (IR) | 0.1 μA | 0.05 μA |
| Junction Capacitance (CJ) | 6pF | 6pF |
| ESD Protection | ±30 kV Contact / ±30 kV Air | ±15 kV Contact / ±20 kV Air |
| Package | DFN1006-2L | DFN1006-2L |
From the comparison of key parameters, both products are designed for 2.5V low-voltage line ESD protection applications. The SE10F10B2.5LA is slightly better in terms of ESD withstand and current capability. It can be used as an alternative to the UCLAMP2511T.TCT.
V. Typical Application Areas of SE10F10B2.5LA
5.1 Mobile Phones and Portable Devices
- Buttons, GPIOs, and control circuits in smartphones, tablets, and portable terminals are easily affected by static electricity from the human body, requiring small-size ESD protection devices for protection.
5.2 Digital Signal Interfaces
For example:
- GPIO interface
- Control signal line
- Data communication line
5.3 Audio and Human-Machine Interfaces
For example:
- Audio Port, Side Key, Keypad
5.4 Notebook Computers and Server Equipment
- For low-voltage control circuits, the SE10F10B2.5LA provides stable ESD protection while meeting the requirements of miniaturized designs.
Summary
As electronic devices evolve towards lower power consumption and smaller size, the importance of 2.5V low-voltage ESD protection devices continues to increase.
The Semiware SE10F10B2.5LA, with its small DFN1006-2L package, 2.5V operating voltage, low leakage current, and high ESD protection capabilities, provides a reliable protection solution for mobile devices, digital interfaces, and portable electronic products.
For design projects that are using or evaluating the Semtech UCLAMP2511T.TCT, the SE10F10B2.5LA can serve as a compatible alternative.
👉 For further confirmation on component selection, PCB layout, or ESD mitigation solutions, please contact the Semiware technical team. We will provide support based on your specific application needs.
