Introduction

With the widespread adoption of high-speed interfaces—such as USB Type-C, HDMI, MIPI, and DisplayPort—in consumer electronics, industrial equipment, and smart devices, interface protection designs face increasingly stringent requirements.

ESD protection devices must not only provide reliable electrostatic discharge protection but also meet the following criteria:

Ultra-low capacitance to avoid interfering with high-speed signal transmission;
Miniaturized packaging to suit compact PCB designs;
Stable supply to minimize project delivery risks.

Semtech’s UCLAMP3312T.TCT and Littelfuse’s SP3312T are widely used low-capacitance ESD protection devices, primarily employed for protecting high-speed differential signal interfaces. Semiware’s SE20F20B3.0MA targets the same application space; this article analyzes its suitability as a replacement by examining factors such as packaging and electrical characteristics.

SE20F20B3.0MA: A Low-Capacitance ESD Protection Solution丨Alternative to UCLAMP3312T.TCT & SP3312T-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

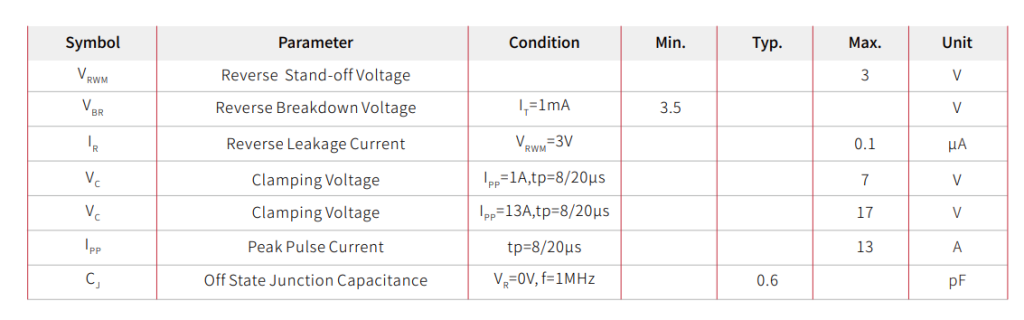

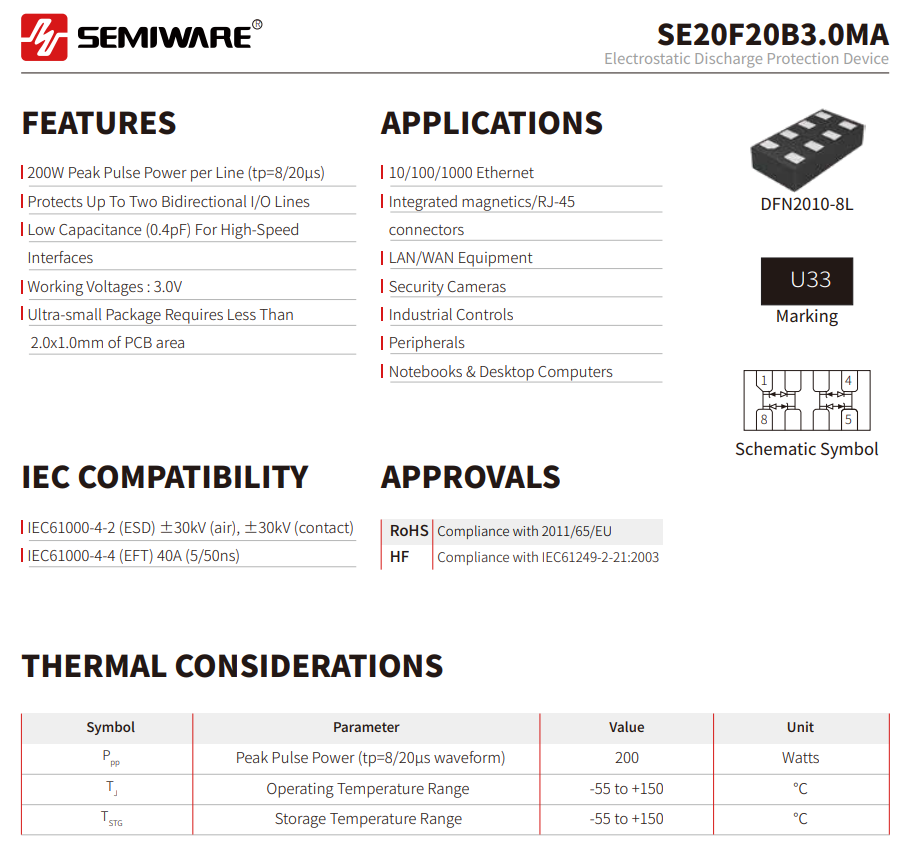

I. Key Features of SE20F20B3.0MA

1.1 Ultra-low capacitance meeting high-speed signal integrity requirements

The SE20F20B3.0MA features a low-capacitance design (0.6pF), effectively minimizing impact on signal lines.

1.2 High-level ESD protection capability

The SE20F20B3.0MA complies with IEC 61000-4-2 standards, providing protection against ±30kV air discharge and ±30kV contact discharge.

1.3 Compact packaging to save PCB space

The SE20F20B3.0MA utilizes a small DFN2010 package, balancing high performance with a reduced PCB footprint.

SE20F20B3.0MA: A Low-Capacitance ESD Protection Solution丨Alternative to UCLAMP3312T.TCT & SP3312T-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

II. Comparison: SE20F20B3.0MA vs. UCLAMP3312T.TCT and SP3312T

ParameterSE20F20B3.0MAUCLAMP3312T.TCTSP3312T
VRWM3.0V 3.3V3.3V
ESD Protection±30kV±30kV±30kV
Peak Pulse Current (Ipp)13A10A15A
Clamping Voltage（VC）17V@13A13V@10A11V@10A
PackageDFN2010DFN2010DFN2010

III. Why choose the SE20F20B3.0MA as a replacement?

In real-world projects, the selection of ESD protection devices depends not only on performance specifications but also on supply stability, which directly impacts project schedules.

Choosing the Semiware SE20F20B3.0MA offers:

  1. Performance compatibility, meeting the protection needs of most high-speed data interfaces. The SE20F20B3.0MA is designed for high-speed interface protection:
  • Low capacitance;
  • High ESD protection capability;
  • Compact package size;
  1. More flexible supply support

Compared to components from some major brands, Semiware offers more flexible supply support, helping customers mitigate supply chain risks.

  • Shorter response times;
  • More flexible delivery arrangements;
  • More direct technical support.
  1. Competitive cost advantages

While meeting application requirements, the SE20F20B3.0MA helps customers:

  • Optimize BOM costs;
  • Enhance product competitiveness;
  • Reduce long-term procurement pressure.

IV. High-speed interface applications

  • USB Type-C interfaces;
  • HDMI video interfaces;
  • MIPI display and camera interfaces;
  • DisplayPort interfaces;
  • High-speed communication interfaces for industrial equipment.

For customers currently using or evaluating the UCLAMP3312T.TCT or SP3312T, the SE20F20B3.0MA offers an alternative that balances performance, cost, and supply stability.

Please contact the Semiware team for detailed specifications, samples, or technical support regarding the SE20F20B3.0MA.

https://en.semiware.com/contact
