I. What is the BSS138?
The BSS138 is a 50V N-channel enhancement-mode MOSFET designed for low-power switching applications. With its compact SOT-23 package, low-voltage drive capability, and stable switching performance, the BSS138 has become a popular choice for logic level shifting applications, especially in I2C bidirectional level shifting circuits.
II. Key Features of the BSS138
- N-channel MOSFET
- 50V Drain-Source Voltage Rating
- SOT-23 Surface Mount Package
- Low Gate Threshold Voltage
- Suitable for Logic Level Switching
III. Why is the BSS138 Widely Used for Logic Level Shifting?
3.1 Simple Bidirectional Level Shifting
The most common application of the BSS138 is I2C level shifting. Because I2C uses an open-drain/open-collector communication structure, MOSFET-based level shifters can easily achieve bidirectional voltage shifting.
- Typical applications include:
- MCU and sensor communication
- Embedded control systems
- Development boards
- IoT devices
3.2 Low-voltage logic compatibility
The BSS138 can be driven by low-voltage control signals, making it suitable for modern electronic systems based on:
- Microcontrollers
- Digital sensors
- Communication modules
- Battery-powered devices
IV. Can Semiware BSS138 Replace ON Semiconductor and Diodes BSS138?
The Semiware BSS138 follows industry-standard configurations and is a reliable alternative to common BSS138 applications.

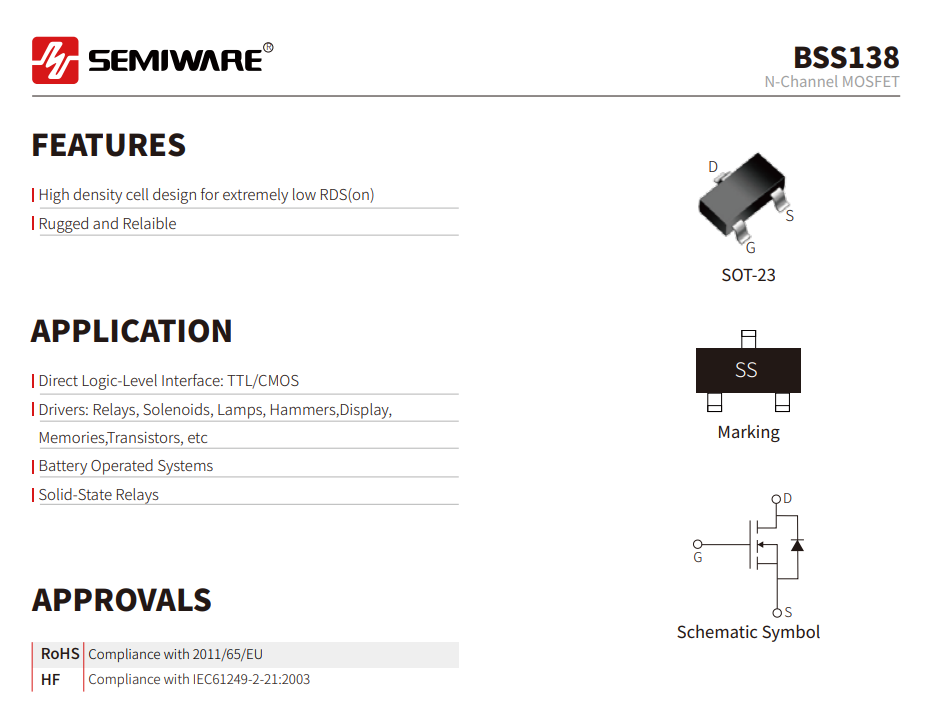

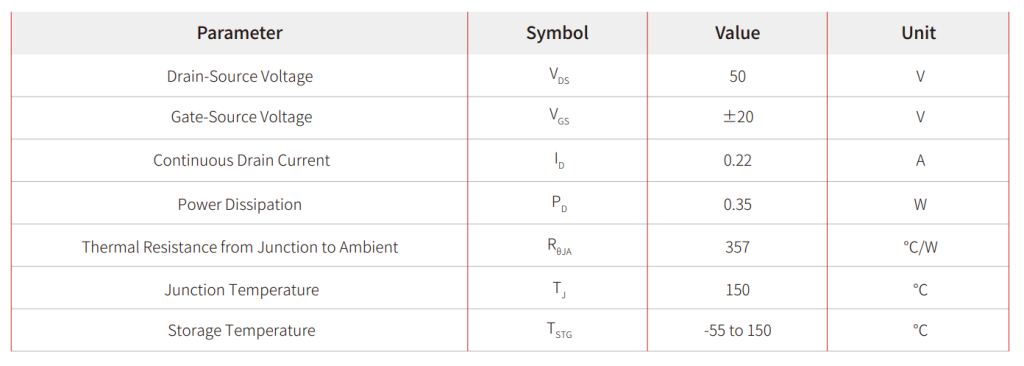

The following compares key electrical characteristics：
| Parameter | Semiware BSS138 | ON Semiconductor BSS138 | Diodes BSS138 |
| Channel | N-Channel | N-Channel | N-Channel |
| Drain-Source Voltage (VDS) | 50V | 50V | 50V |
| Continuous Drain Current (ID) | 220mA | 220mA | 200mA |
| Gate-Source Voltage (VGS) | ±20V | ±20V | ±20V |
| RDS(on) (Max.) @ VGS=10V | 3.5Ω | 3.5Ω | 3.5Ω |
| Power Dissipation (PD) | 350mW | 350mW | 350mW |
| Package | SOT-23 | SOT-23 | SOT-23 |
Based on the parameter comparison, Semiware BSS138 provides comparable electrical characteristics to ON Semiconductor and Diodes Incorporated BSS138, making it a reliable alternative solution for logic level conversion and low-power switching applications.
Conclusion
The BSS138 has become a widely adopted standard MOSFET in the industry due to its simple structure, compact SOT-23 package, and suitability for logic level shifting applications.
The Semiware BSS138 provides a reliable alternative for applications such as I2C level shifting, GPIO voltage shifting, and low-power switching circuits.
For technical support, product selection, or application assistance, please contact Semiware's engineering team for professional service.
