The S9013 is a common, general-purpose NPN transistor widely used in electronic circuits for small-signal amplification, switching control, sensor interfacing, and control circuits in consumer electronics.
This article outlines the key parameters, hFE classifications, and typical applications of the Semiware S9013, as well as the differences between the S9013 and the S9012, from the perspectives of practical circuit design and BOM (Bill of Materials) replacement.
I. Key Parameters of the S9013 Transistor

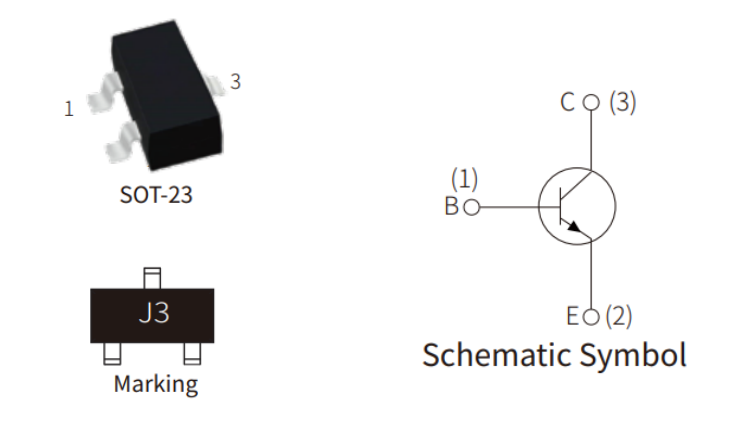

The S9013 is a general-purpose NPN bipolar junction transistor (BJT) primarily used for small-signal amplification and switching control. Its key parameters are as follows:
| Parameter | S9012 Specs |
| Type | NPN |
| Package | SOT-23 |
| VCBO | 40 V |
| VCEO | 25 V |
| VEBO | 5 V |
| IC | 500 mA |
| PC | 300 mW |
| hFE | 120–400 |
| fT | 150 MHz |
It is important to note that the maximum ratings listed above should not be interpreted as recommended operating conditions for actual circuits. The permissible current and power dissipation in a real-world application depend on factors such as ambient temperature, PCB heat dissipation, package thermal resistance, and specific operating conditions.
S9013 transistor datasheet:
II. S9013 vs. S9012: What Are the Differences?
Both the S9013 and S9012 are transistors housed in SOT-23 packages and are frequently compared as a complementary pair. The fundamental difference is:
- S9013: NPN type
- S9012: PNP type
Due to their differing polarities (NPN vs. PNP), the two devices differ in terms of circuit connections, driving methods, and typical application placement.
- Single-transistor use: Choose the S9013 (NPN) if a high-level input is required to activate the switch; choose the S9012 (PNP) if a low-level input is required.
- Push-pull circuits: The two are used as a pair, with one handling the positive half-cycle signal and the other handling the negative half-cycle signal to achieve bidirectional drive output.
III. Typical Applications of the S9013
As a general-purpose NPN transistor, the S9013 has a wide range of applications, making it particularly suitable for small-signal amplification and switching control.
3.1 Small-Signal Switching
- The S9013 can be used for switching control of LEDs, buzzers, relays, and other small loads.
3.2 Small-Signal Amplification
- As an NPN BJT, the S9013 can be used in circuits for small-signal amplification, signal conditioning, and more.
- In amplification applications, the appropriate device should be selected based on the operating point, biasing conditions, required gain, and frequency range.
3.3 Sensor and Control Circuits
- The S9013 is suitable for sensor interfaces, control circuits, and embedded modules; in these applications, the transistor is typically used to convert a small control signal into a larger collector current.
3.4 Consumer Electronics and Control Boards
- The S9013's SOT-23 package is ideal for space-constrained PCB designs, making it suitable for use in home appliance control boards, consumer electronics, and various small control modules.
IV. S9013 Alternatives
For mass-production projects, transistor selection requires considering not only basic electrical parameters but also batch consistency, supply stability, and support for BOM (Bill of Materials) replacement.
Semiware’s S9013 offers:
- Standard SOT-23 package, suitable for compact surface-mount designs
- Stable batch-to-batch consistency
- Support for BOM replacement and parameter matching
- Sample availability for design verification
- Technical and FAE support for component selection
If your project is seeking an S9013 supplier, a secondary source, or a BOM replacement solution, Semiware can assist with specification matching and sample verification based on the parameters of the original component.
