๐ Introduction
In the design of surface-mount discrete transistors, the MMBT2907A is a general-purpose PNP transistor suitable for applications such as signal amplification, low-power switching, and interface control.
The Semiware MMBT2907A utilizes the SOT-23 surface-mount package, making it ideal for high-density PCB designs and automated SMT assembly. It is supplied in 7-inch tape-and-reel packaging (3,000 units per reel), catering to the material supply needs of mass-production projects.
๐ Key Electrical Characteristics
The MMBT2907A is a PNP bipolar junction transistor (BJT) designed for both small-signal amplification and switching applications. Its primary specifications are as follows:
- Collector-Emitter Voltage (VCEO): -60V
- Continuous Collector Current (IC): -600mA
- DC Current Gain (hFE): 100โ300
- Emitter-Base Voltage (VEBO): -5V
- Total Device Power Dissipation (PD): 250mW
- Operating Temperature: -55ยฐC to +150ยฐC
- Transition Frequency (fT): 200MHz
For switching applications, the VCE(sat) parameter of the MMBT2907A is also a critical consideration:
VCE(sat): -0.4V @ IC=-150mA, IB=-15mA
VCE(sat): -1.6V @ IC=-500mA, IB=-50mA
During actual design, VCE(sat) should be evaluated in conjunction with load current and base drive conditions, rather than relying solely on the maximum collector current rating.
๐ Complementary NPN Model for MMBT2907A
The Semiware MMBT2907A is a PNP transistor; its complementary NPN counterpart is the MMBT2222A. Both can be used in circuits requiring NPN/PNP complementary devices, such as:
- Push-pull outputs
- Complementary switching circuits
- Signal control
- Small-signal amplification stages
When paired in the same design, in addition to transistor polarity, parameters such as hFE, voltage ratings, switching characteristics, and biasing conditions must be verified against the specific circuit requirements.
๐ Package and Design Considerations
The Semiware MMBT2907A comes in an SOT-23 surface-mount package (no TO-92 through-hole version is available), making it suitable for SMT PCB designs and automated assembly.
When selecting or substituting this component, consider the following points in addition to electrical parameters:
- Verify PNP Polarity
The MMBT2907A is a PNP transistor; its operating polarity differs from that of an NPN transistor. Ensure the circuit topology is compatible before substitution.

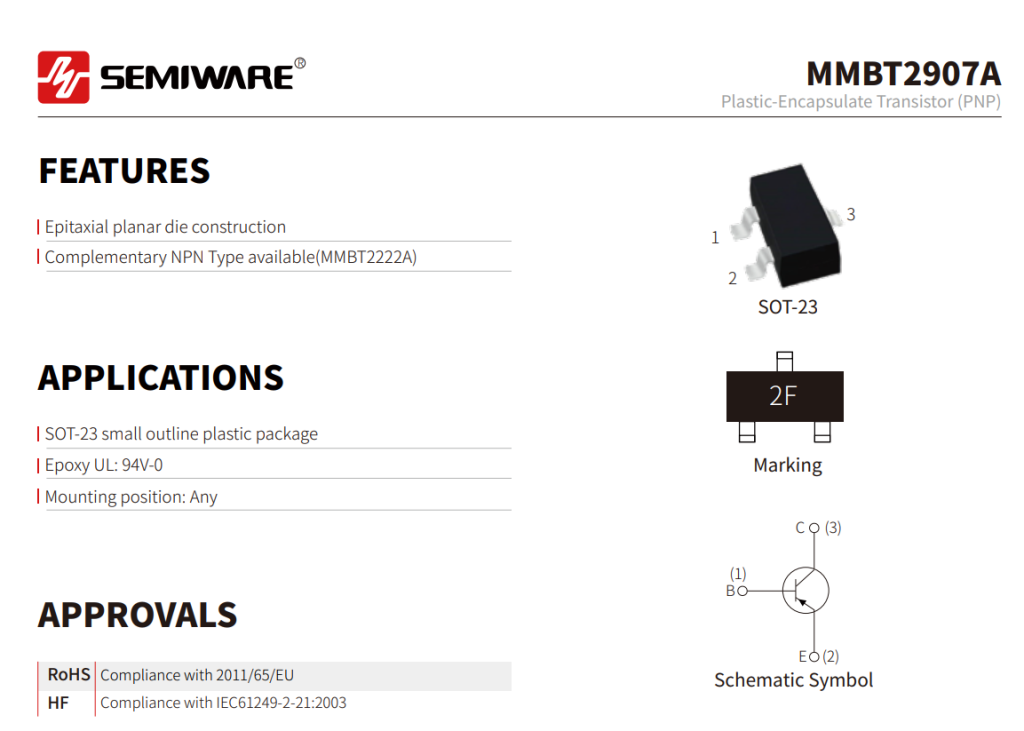

- Verify Pinout
Semiware MMBT2907A:
Pin 1 = Base
Pin 2 = Emitter
Pin 3 = Collector
Even if two devices share the same SOT-23 package, pin assignments may differ; always consult the datasheet before substitution.
- Consider Actual Power Dissipation
Although the MMBT2907A has a maximum collector current of -600mA, actual operating current is limited by power dissipation and thermal conditions.
Especially with the compact SOT-23 package, factors such as ambient temperature, PCB heat dissipation, VCE, and actual load current must be considered holistically.
๐ Typical Applications
The MMBT2907A is suitable for a wide range of general-purpose small-signal and switching circuits, including:
- Low-power load switching
- High-side switching
- LED driving
- Interface and level control
- Analog signal amplification
- Sensor signal conditioning
- Consumer electronics
- IoT smart modules
- Industrial control boards
- Push-pull and complementary transistor circuits
For space-constrained PCB designs requiring automated SMT assembly, the SOT-23 package enables PNP transistor switching and amplification functions within a minimal footprint. Technical Data
For complete maximum ratings, electrical characteristics, package dimensions, and packaging information, please refer to the official Semiware product page and datasheet:
๐ MMBT2907A Product Page: https://en.semiware.com/bipolar-transistors/mmbt2907a/
๐ Summary
The MMBT2907A is a general-purpose PNP surface-mount transistor in an SOT-23 package. It features a -60V voltage rating, a maximum continuous collector current of -600mA, an hFE of 100โ300, and a transition frequency of 200MHz. It is suitable for applications such as low-power switching, signal control, and small-signal amplification.
When selecting components for new projects or considering SMD replacements, it is recommended to comprehensively verify electrical parameters, VCE(sat), pinout, package type, and actual thermal conditions to ensure the device is compatible with the specific circuit design.
