Introduction

With the widespread adoption of high-speed communication interfaces (USB, HDMI, LVDS, MIPI) in consumer electronics, smart devices, and industrial electronics, ESD (Electrostatic Discharge) protection devices must not only offer reliable protection but also meet stringent requirements for low parasitic capacitance, miniaturization, and high-speed signal integrity.

Consequently, ultra-low capacitance ESD protection diodes have become a crucial choice for high-speed interface protection designs.

The Semiware SE06F10B5.0MA is a low-capacitance ESD protection device housed in an ultra-compact DFN0603 package. Specifically designed for high-speed signal interfaces, it serves as a replacement for various ESD devices from international brands, including:

  • PESD5V0F1USF
  • PESD5V0F1BRSF
  • VBUS05B1-SD0
  • ESD0P2RF-02LS
SE06F10B5.0MA: A Drop-in Replacement for DFN0603 Ultra-Low Capacitance ESD Diodes-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

I. SE06F10B5.0MA Key Features

The SE06F10B5.0MA utilizes the DFN0603-2L package, delivering reliable ESD protection within an extremely compact footprint.

SE06F10B5.0MA: A Drop-in Replacement for DFN0603 Ultra-Low Capacitance ESD Diodes-Protection Devices-TVS Diodes-ESD Protection devices-Gas Discharge Tube-Thyristor-Pled Protectors-Mov

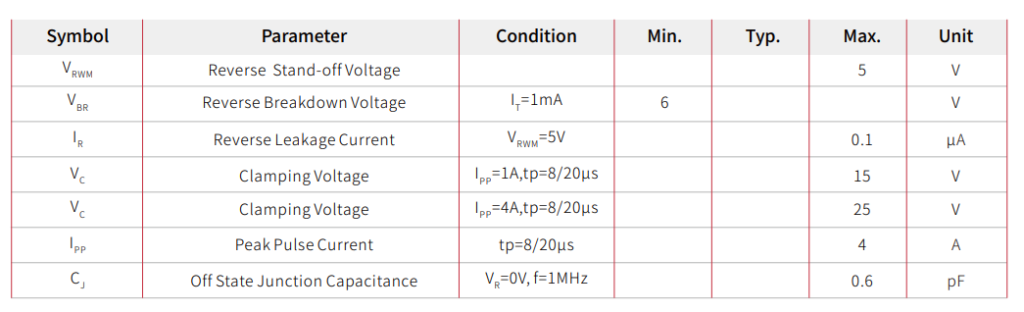

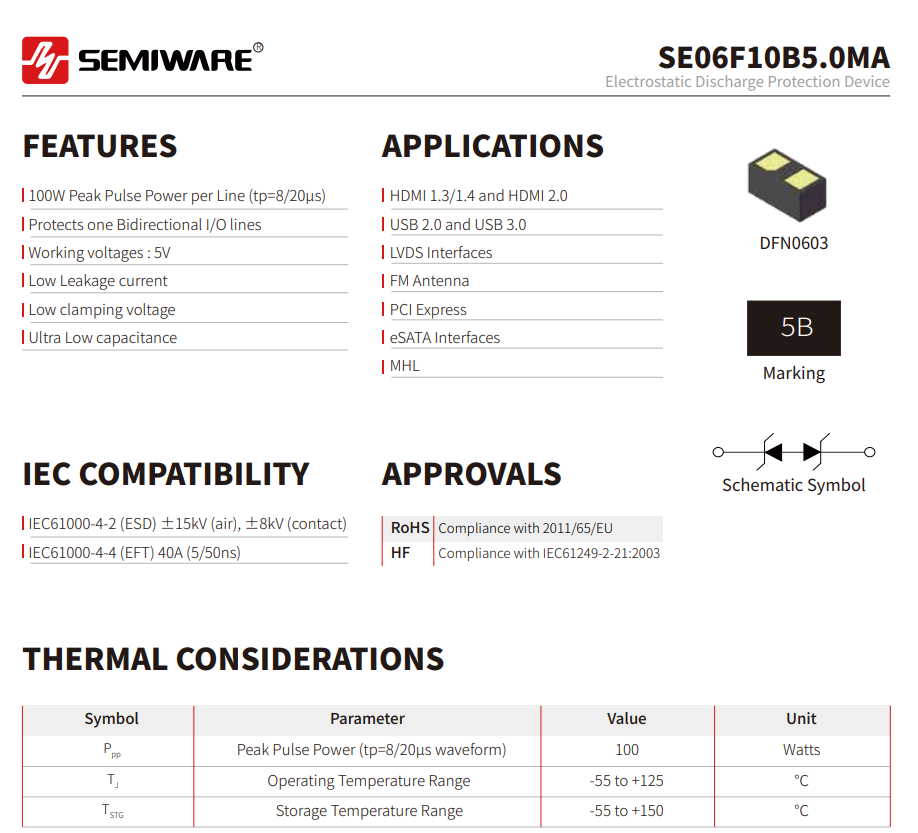

ParameterSE06F10B5.0MA
PackageDFN0603-2L
Working Voltage VRWM5V
Breakdown Voltage VBR≥6V
Peak Pulse Current4A (8/20μs)
Clamping Voltage≤15V @1A
Capacitance≤0.6pF
Leakage Current≤0.1μA
IEC61000-4-2±8kV Contact / ±15kV Air

II. Why is the SE06F10B5.0MA Replacement Necessary?

Engineers frequently encounter supply chain risks during actual project development and mass production.

Relying on a single supply channel can lead to:

  • Extended lead times
  • Risk of product discontinuation
  • Rising procurement costs

Therefore, a reliable secondary source of supply is essential.

III. Parameter Comparison: SE06F10B5.0MA vs. Mainstream Brand ESD Devices

ParameterSE06F10B5.0MAPESD5V0F1USFPESD5V0F1BRSFVBUS05B1-SD0ESD0P2RF-02LS
SupplierSemiwareNXPNXPVishayInfineon
PackageDFN0603DFN0603DFN0603DFN0603DFN0603
VRWM5V5V5V5V5V
Peak Pulse Current (IPP)4A3A2.2A2.5A3A
Capacitance0.6pF0.6pF0.3pF0.4pF0.4pF

Based on the parameter comparison above, the SE06F10B5.0MA demonstrates performance comparable to mainstream products in terms of operating voltage, low capacitance characteristics, and clamping performance, making it a reliable second-source solution for high-speed interface ESD protection.

For applications with even stricter signal integrity requirements—such as high-speed SerDes, MIPI high-speed links, and RF interfaces—Semiware can also provide ultra-low capacitance ESD protection solutions tailored to specific application needs.

IV. SE06F10B5.0MA Applications

4.1 USB Interface Protection

  • USB 2.0
  • USB 3.0
  • USB Type-C

4.2 HDMI Interface Protection

  • Display devices
  • Gaming devices
  • High-definition audio/video equipment

4.3 Consumer Electronics

  • Smartphones
  • Tablets
  • TWS earbuds
  • Wearable devices

4.4 Industrial and Communication Equipment

  • MIPI interfaces
  • LVDS interfaces
  • High-speed data interfaces

Conclusion

With the advancement of high-speed electronic devices, low-capacitance ESD protection components have become a crucial part of interface protection design.

The Semiware SE06F10B5.0MA offers engineers a reliable, low-capacitance ESD solution in a compact package.

If you are looking for a replacement for DFN0603 ESD diodes, please contact us for datasheets, samples, and technical support.
