Introduction
With the development of USB, Ethernet, I/O interfaces, and smart terminal devices, electronic systems have placed higher demands on ESD protection devices.
Protection devices not only need to withstand electrostatic discharge (ESD) shocks but also must not interfere with high-speed signal transmission. Therefore, low-capacitance, small-package, high-ESD-rating TVS devices have gradually become the mainstream solution in interface protection design.
Among them, the GBLC series SOD-323 low-capacitance ESD devices launched by ProTek, Bourns, Panjit, and other manufacturers are widely used in:
- Ethernet interfaces
- USB interfaces
- I2C communication
- Industrial control interfaces
- Consumer electronics
The Semiware GBLC12CI also adopts an SOD-323 package design, providing a low-capacitance ESD protection solution for 12V operating voltage applications.

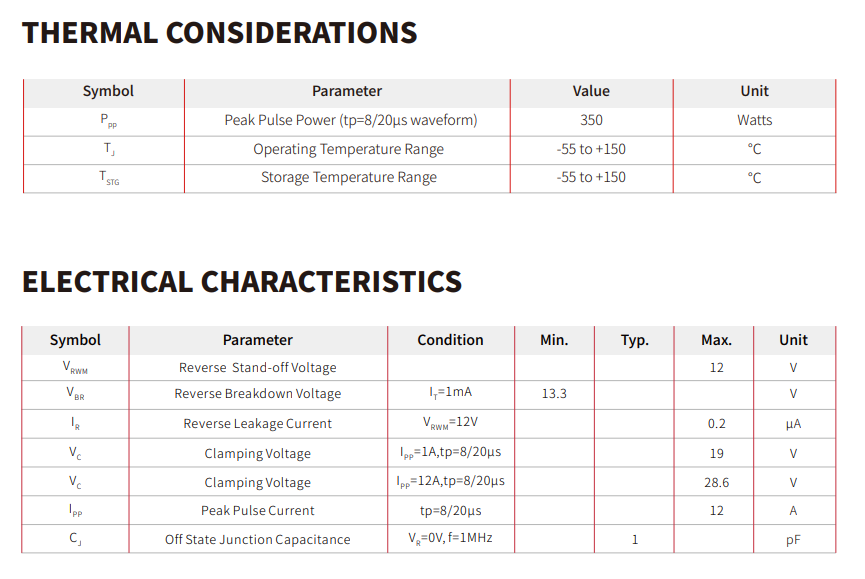

I. Key Features of GBLC12CI
| Parameter | GBLC12CI |
| Package | SOD-323 |
| Working Voltage (VRWM) | 12V |
| Breakdown Voltage | 13.3V |
| Clamping Voltage | 28.6V@12A |
| Peak Pulse Power | 350W (8/20μs) |
| Capacitance | 1pF |
| ESD Protection | ±30kV |
| Polarity | Bi |
II. Comparison of Semiware GBLC12CI with Mainstream Alternative Models
| Part Number | Manufacturer | Package | VRWM | VC | Capacitance |
| GBLC12CI | Semiware | SOD-323 | 12V | 28.6V | 1pF |
| CDSOD323-T12C | Bourns | SOD-323 | 12V | 28.3V | 3pF |
| GBLC12CI | ProTek | SOD-323 | 12V | 28.6V | 0.6pF |
| GBLC12CI | PANJIT | SOD-323 | 12V | 19V | 3pF |
III. Why can Semiware GBLC12CI be used as an alternative?
- Package Compatibility, No PCB Design Modification Required
The GBLC12CI uses a standard SOD-323 package, consistent with the GBLC series.
For products already using the GBLC12C series design, BOM replacement is possible, reducing redesign costs.
- Highly Matched Electrical Parameters
Key parameters include:
Consistent 12V operating voltage; Consistent breakdown voltage; Similar clamping voltage; Capacitors all controlled at the 1pF level.
Therefore, drop-in replacement can be achieved in most application scenarios.
- More Stable Supply Chain Options
Besides performance matching, the significant value of semiware replacement also lies in:
Shorter supply cycles; Reduced procurement risks; More flexible technical support.
For long-term mass production projects, a multi-supplier strategy can improve supply chain stability.
IV. Applications
GBLC12CI is suitable for:
- Ethernet interface protection
- USB interface protection
- RS-485 interface
- I/O port protection
- Smart devices
- Industrial control equipment
Conclusion
For customers looking for alternatives to ProTek GBLC12CI, Bourns CDSOD323-T12C, or Panjit GBLC series, Semiware GBLC12CI offers a highly compatible and performance-matching domestic alternative.
With its small SOD-323 package, low 1pF capacitance, and ±30kV ESD protection, GBLC12CI meets the needs of most high-speed interface protection applications.
If you are evaluating alternatives to the GBLC series, please contact Semiware for datasheets, samples, and technical support.
