Overview
Whether it's residential rooftop solar PV, commercial and industrial energy storage systems, or large-scale photovoltaic power plants, inverters play a crucial role as the "central hub for power conversion."
However, due to their long-term operation in high-voltage, outdoor, and highly interference-prone environments, they are highly susceptible to surges, lightning strikes, ESD (electrostatic discharge), and power supply anomalies.
This article will delve into the operating environment and principles of PV inverters, as well as the electrical threats they face, and provide specific circuit protection solutions.

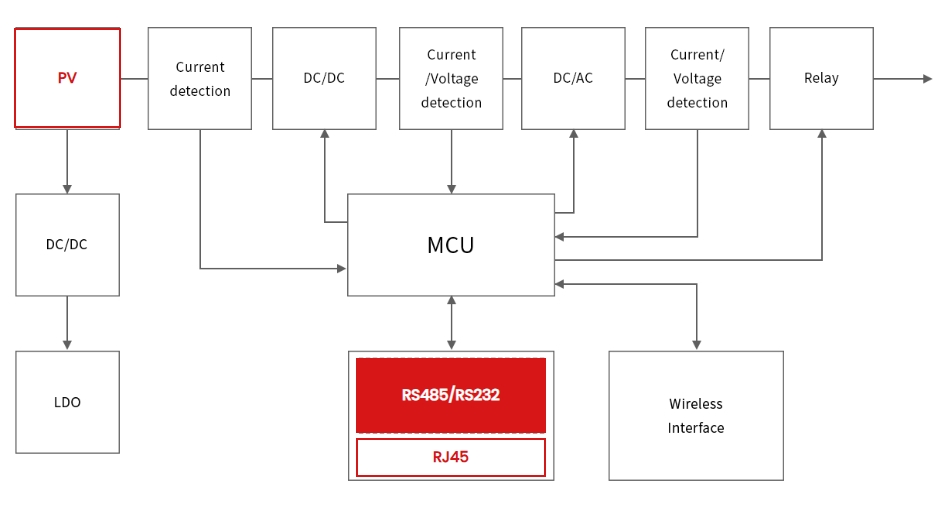

I. What is a PV Inverter?
A PV Inverter, short for Photovoltaic Inverter, is a system that converts direct current (DC) output from solar panels into alternating current (AC) usable by household, grid, or industrial equipment.

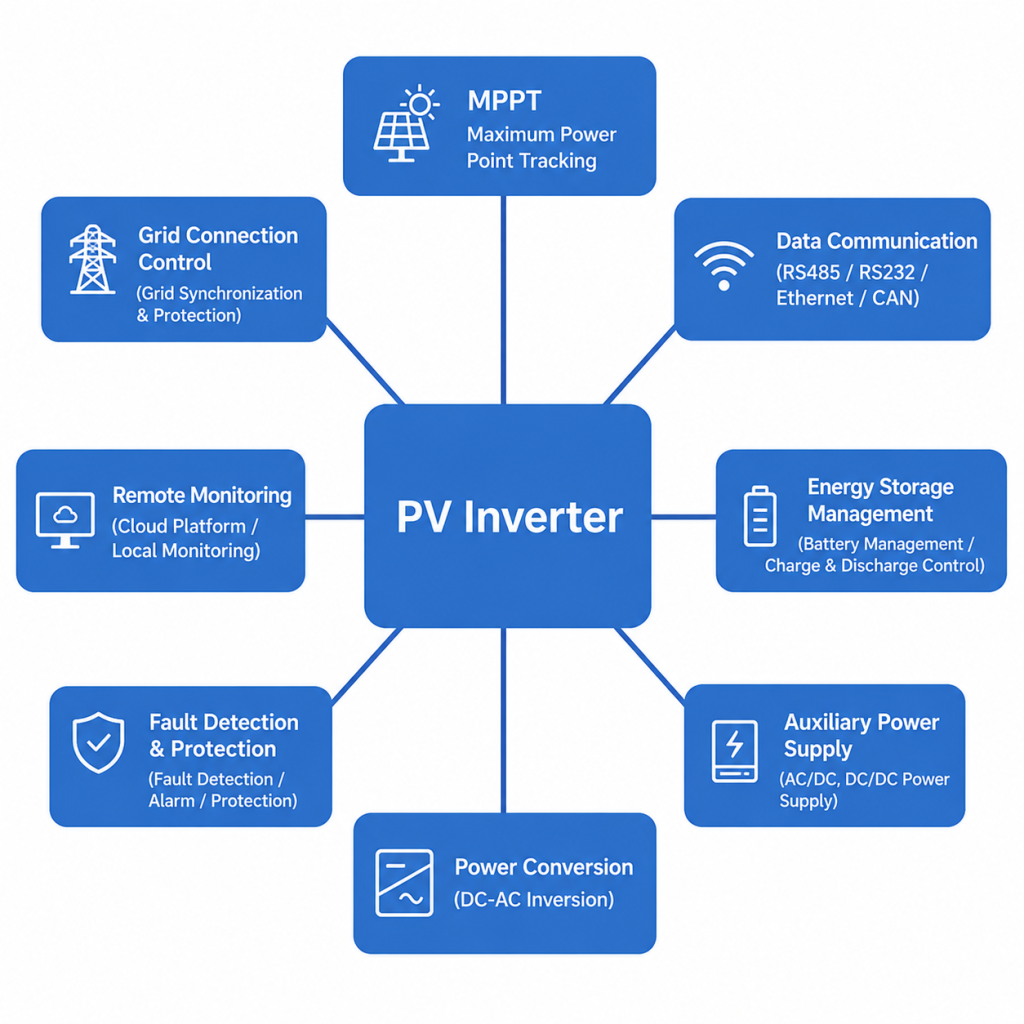

Core modules of a photovoltaic inverter:
- MPPT (Maximum Power Point Tracking)
- Grid connection control
- Data communication
- Remote monitoring
- Energy storage management
- Fault detection
Therefore, it not only contains high-power circuits, but also a large number of communication and control interfaces.
II. Working Environment and Electrical Risks of a PV Inverter
Photovoltaic inverters typically operate in relatively harsh environments:
- Long-term Outdoor Operation
Inverters are usually installed on rooftops, in outdoor cabinets, photovoltaic power stations, and industrial plants, making them susceptible to lightning surges, grid fluctuations, temperature and humidity changes, and electrostatic discharge.
- High-Voltage, High-Current Environment
The voltage after photovoltaic series connection can reach hundreds of volts, or even exceed 1000V.
Surges, EFTs (Electrical Fast Transients), and switching spikes are easily generated during high-voltage switching.
- Long Communication Lines
PV inverters typically need to connect to RJ45 networks, RS485, RS232, CAN Bus, and remote monitoring systems. Long cables are susceptible to lightning strikes and common-mode interference.
III. Semiware Recommended Protection Solution
1️⃣ PV Input Protection Solution
The PV input terminal, directly connected to the solar panel, is one of the locations with the highest surge risk.
Recommended Solution: Use a high-power TVS diode for transient overvoltage protection.
| Part Number | Device Type | Key Parameters | Main Function |
| SVC500B30（5.0SMDJ30CA) | TVS Diode | 30V, 5000W, Bidirectional, SMC | Suppresses bidirectional surges and transient overvoltage |
| 5KP30A | TVS Diode | 30V, 5000W, Unidirectional, P600 | Absorbs high-energy surge pulses and protects downstream power devices |
2️⃣ RJ45 Network Interface Protection Solution
Modern inverters generally support Ethernet, cloud platform monitoring, and remote maintenance, making the RJ45 interface a high-risk area for ESD and surges.
A combined solution is recommended: GDT + ESD Diode + Protection Thyristor
| Part Number | Device Type | Key Parameters | Main Function |
| SG3225B800 | Gas Discharge Tube | 800V, 1KA, 0.5pF | Diverts high-energy lightning surges |
| SE3D15B3.3MA(GBLC03CI) | Low Capacitance ESD Diode | 3.3V, 0.6pF, ±30KV | Provides high-speed ESD protection |
| SESRV05-4A | TVS Diode Array | 5V, 0.8pF, ±15KV | Protects Ethernet differential signal lines |
| STB100B58 | Protection Thyristor | 58V, 6KV, 100A | Suppresses transient overvoltage |
| STB100B275 | Protection Thyristor | 275V, 6KV, 100A | Provides higher-level surge protection |
3️⃣ RS485 / RS232 Communication Interface Protection Solution
RS485 and RS232 are widely used in photovoltaic monitoring, industrial control, and energy storage communication.
Due to the long communication lines, they are easily susceptible to interference.
A combined protection solution is recommended: GDT + TVS Diode + Protection Thyristor
| Part Number | Device Type | Key Parameters | Main Function |
| SG3D05B090 | Gas Discharge Tube | 90V, 5KA | Diverts high-energy surge current |
| SVB60B15(SMBJ15CA) | SMD TVS Diode | 16.7~18.5V, 600W | Clamps abnormal communication line voltage |
| SE23T40B712B(SM712) | TVS Diode Array | +7/-12V, ±25KV, 55pF | Provides ESD protection for RS232/RS485 |
| STB100B6.0 | Protection Thyristor | 6.0V, 6KV, 100A | Suppresses transient surge pulses |
Reference Design Diagram
👉 Complete circuit design scheme: https://en.semiware.com/contact/
With over 15 years of expertise in EMC protection, Semiware delivers comprehensive circuit protection solutions for modern PV inverters and renewable energy systems.
Our portfolio includes TVS diodes, ESD protection devices, gas discharge tubes (GDT), and protection thyristors, providing multi-level surge and ESD protection for both power and communication interfaces in photovoltaic inverter systems.
If you are designing PV inverters, solar energy systems, or industrial power conversion equipment, contact Semiware for reliable circuit protection solutions and professional component selection support.
