Introduction
SOD-123 and SOD-123FL are two commonly used small-form-factor packages. Although they look similar and are often used for the same types of diodes, there are significant differences regarding package structure, PCB footprint, thermal performance, and application requirements.
Understanding the distinctions between SOD-123 and SOD-123FL packages helps engineers select the most suitable diode package for their designs.

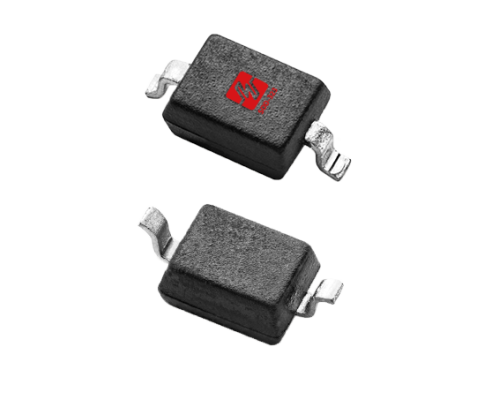

I. What is the SOD-123 Package?
SOD-123 is a widely used surface-mount diode package designed to strike a balance between compact size and electrical performance.
The SOD-123 package is commonly used for the following types of diodes:
- Schottky diodes
- Zener diodes
- TVS diodes
- Switching diodes
- General-purpose rectifier diodes
Typical applications include:
- Power management circuits
- Battery-powered devices
- Consumer electronics
- Industrial control systems

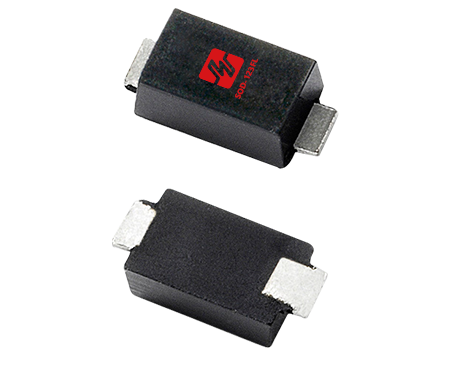

II. What is the SOD-123FL Package?
The "FL" in SOD-123FL typically stands for "Flat Lead," referring to an optimized lead structure designed to reduce package height and improve PCB space utilization.
Compared to the standard SOD-123, the SOD-123FL offers the following advantages:
- Lower package height
- Higher space utilization efficiency
- Better suited for ultra-thin, compact electronic products
- Optimized SMT assembly performance
The SOD-123FL is often the preferred package in applications where PCB thickness and component height are critical design considerations. Typical applications include:
- Portable electronic devices
- Wearable devices
- Compact power modules
- Space-constrained PCB designs
- Mobile devices and consumer electronics
III. Key Differences Between SOD-123 and SOD-123FL
| Parameter | SOD-123 | SOD-123FL |
| Package Type | Standard SMD diode package | Low-profile flat lead package |
| Height | Higher | Lower |
| PCB Space | Standard | More compact |
| Lead Structure | Conventional lead design | Flat lead design |
| Thermal Performance | Generally better due to larger structure | Slightly reduced due to smaller profile |
| Power Capability | Suitable for relatively higher power applications | Suitable for compact, lower-power designs |
| Assembly | Standard SMT process | Optimized for space-saving SMT designs |
IV. How to Choose Between SOD-123 and SOD-123FL?
Choose SOD-123 when:
- Higher current handling capability is required
- Thermal performance is critical
- PCB space is ample
- The design requires higher power handling capability
Choose SOD-123FL when:
- PCB space is limited
- Low-profile (thin) components are required
- Product thickness is a key factor
- Compact SMT design is prioritized
V. Applications of SOD-123 and SOD-123FL Diodes
Both SOD-123 and SOD-123FL packages are widely used in modern electronic systems. Typical applications include:
Consumer Electronics:
- Smartphones
- Wearable devices
- Portable devices
- Smart home products
Power Management:
- DC/DC converters
- Battery charging circuits
- Voltage regulation circuits
- Power supply protection
Industrial Electronics:
- Control systems
- Sensor modules
- Embedded electronic devices
VI. Semiware SMD Diode Solutions
Semiware offers a wide range of semiconductor protection devices and SMD diodes designed for consumer electronics, automotive electronics, and industrial applications.
Our product portfolio includes:
- TVS diodes
- ESD protection diodes
- Schottky diodes
- Zener diodes
- Rectifier diodes
SMD diode packages include SOD-123, SOD-123FL, SOD-323, SOT-23, DFN, and other compact package types.
Please contact the Semiware technical team for diode selection support, package replacement evaluation, or customized protection solutions.
