High-Surge SMD Metal Oxide Varistors (SMD MOVs): Reliable Surge Protection in a Compact Package

As electronic products increasingly trend toward miniaturization, high integration, and automated manufacturing, traditional radial-lead MOVs (Radial MOVs) often struggle to meet the space and manufacturing process requirements of certain applications.

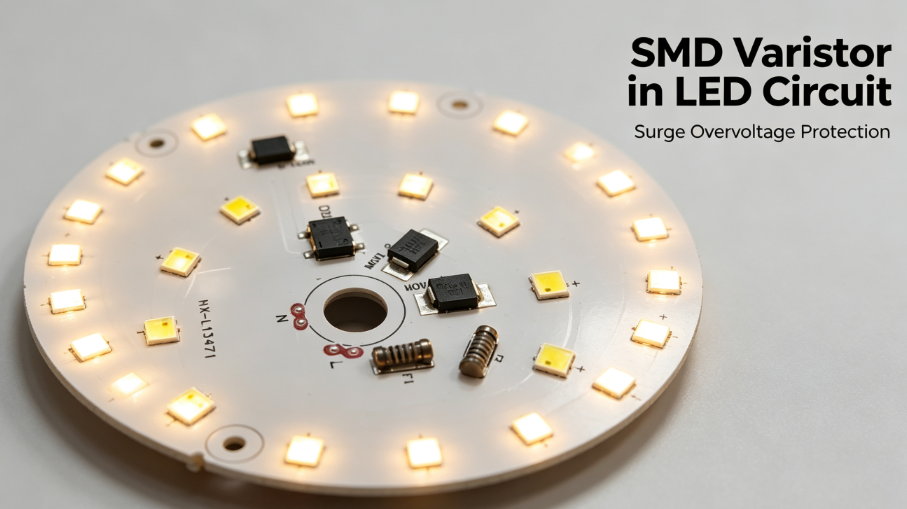

Particularly in applications such as DOB (Driver-on-Board) LED luminaires, LED driver power supplies, smart home appliances, and compact power modules, an increasing number of customers are adopting molded SMD MOVs to replace traditional radial-lead MOVs (such as the 05D and 07D series).

I. What is an SMD MOV?

An SMD MOV (Surface Mount Metal Oxide Varistor) is a metal oxide varistor that utilizes surface-mount packaging technology.

Semiware’s SMD MOV series features compact packaging, high surge-handling capability, excellent consistency, and reliable soldering performance, enabling customers to achieve effective overvoltage protection within limited PCB space.

Notably, the SMV3225 and SMV4032 series of high-surge SMD MOVs—thanks to their superior surge current capabilities—are ideal choices for replacing traditional radial-lead MOVs in space-constrained applications.

II. Advantages of SMD MOVs over Traditional Radial-Lead MOVs

2.1 Miniaturized packaging for compact PCB designs

Modern electronic devices demand increasingly higher standards for size and space efficiency.

While traditional radial MOVs require significant mounting space, SMD MOVs utilize a surface-mount structure, effectively reducing the PCB footprint.

2.2 Supports automated SMT production, boosting manufacturing efficiency

Unlike radial components, SMD MOVs can be mounted directly using high-speed pick-and-place machines. This eliminates the need for traditional through-hole assembly processes, making them well-suited for high-volume automated production.

2.3 High surge current capability for reliable overvoltage protection

Despite their compact package design, high-performance SMD MOVs deliver robust surge-handling capabilities.

Semiware’s SMV3225 and SMV4032 series utilize optimized material and process designs; while maintaining a compact footprint, they achieve high 8/20μs surge current ratings—with the SMV4032 series capable of handling a maximum surge current of 3kA.

2.4 Excellent Manufacturing Consistency and Soldering Reliability

Semiware SMD MOVs utilize mature manufacturing processes, delivering stable electrical performance and excellent batch-to-batch consistency.

Additionally, the products withstand high-temperature reflow soldering processes, helping to enhance soldering reliability during automated production.

III. Performance Comparison: SMD MOV vs. Traditional Leaded MOV (05D, 07D)

Taking Vac: 300V as an example:

👉 The comparison data demonstrates that, at the same voltage rating, the SMV3225 and SMV4032 series SMD MOVs offer surge protection capabilities comparable to—or even exceeding—those of traditional leaded MOVs.

IV. SMD MOV Application Areas

SMD varistors are widely used for overvoltage protection in various electronic devices.

LED Lighting:

• DOB (Driver-on-Board) LED luminaires
• LED driver power supplies
• Smart lighting systems

Consumer Electronics:

• Mobile phone chargers
• Laptops
• Tablets
• Digital devices

Home Appliances and Industrial Equipment:

• Air conditioners
• Washing machines
• Refrigerators
• Power modules
• Control systems

V. Semiware SMD MOV Product Series

Semiware offers a wide range of SMD varistor package options, including:

0402, 0603, 0805, 1206, 1812, 2220, 3220, 3225, 4032, etc.

With diverse package sizes and stable, reliable surge protection performance, Semiware provides flexible MOV solutions for applications such as LED lighting, power supply equipment, and consumer electronics.
