Introduction
In high-speed interface designs such as USB Type-C, USB 3.x, and HDMI, ESD protection devices not only need reliable electrostatic discharge protection capabilities but also need to minimize the impact on high-speed signal transmission.
The Semtech RClamp0521P and Amazing AZ5325-01F are both common DFN1006 low-capacitance ESD protection devices on the market, widely used for high-speed data interface protection.
However, in actual project development, due to factors such as supply chain, delivery time, and cost control, engineers often need to find alternative solutions with matching performance.
This article will analyze the compatibility of the Semiware SE10F10B5.0MA with the RClamp0521P and AZ5325-01F through a comparison of key parameters, helping engineers evaluate its feasibility as an alternative in high-speed interface ESD protection applications.
I. Key Features of the SE10F10B5.0MA

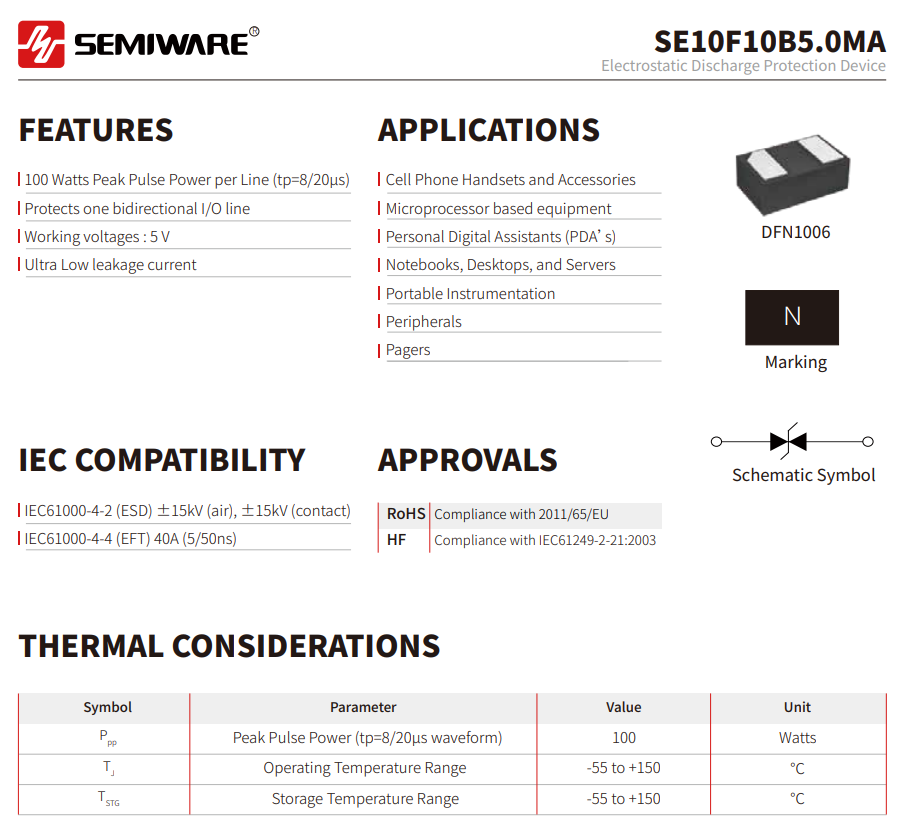

The Semiware SE10F10B5.0MA is a low-capacitance ESD protection device designed for high-speed interfaces. It uses a DFN1006-2L package and provides reliable ESD protection within limited PCB space while minimizing the impact on high-speed signal transmission.
Key features include:
- 5V operating voltage (VRWM), suitable for various high-speed signal interface protection applications;
- Ultra-low junction capacitance design (0.4pF), effectively reducing signal attenuation and meeting the requirements of high-speed data transmission;
- IEC61000-4-2 ESD protection rating: ±15kV Air / ±15kV Contact, providing reliable electrostatic discharge protection;
- 4A peak pulse current capability (8/20μs waveform), capable of handling transient overvoltage surges;
- Low leakage current design, IR Max 1μA, suitable for low-power electronic devices;
- Supports single-channel bidirectional I/O line protection, suitable for differential signals and high-speed data interfaces;
- DFN1006 package (1.0mm × 0.6mm), suitable for space-constrained consumer electronics and portable device applications.
III. Comparison of Core Parameters Between SE10F10B5.0MA, RClamp0521P, and AZ5325-01F
| Parameter | SE10F10B5.0MA | RClamp0521P | AZ5325-01F |
| VRWM | 5V | 5V | 5V |
| IEC61000-4-2 Air | ±15kV | ±15kV | ±15kV |
| IEC61000-4-2 Contact | ±15kV | ±8kV | ±8kV |
| Peak Pulse Current | 4A | 4A | 4A |
| Clamping Voltage @4A | 25V | 25V | 25V |
| Capacitance (max) | 0.4pF | 0.5pF | 0.65pF |
| Leakage Current (max) | 1μA | 1μA | 1μA |
| Package | DFN1006-2L | DFN1006-2L | DFN1006-2L |
From the parameter comparison, Semiware SE10F10B5.0MA The SE10F10B5.0MA exhibits high compatibility with Semtech RClamp0521P and Amazing AZ5325-01F in key parameters such as operating voltage, package, ESD protection, and peak pulse current.
Furthermore, the SE10F10B5.0MA features lower junction capacitance, providing better signal integrity in high-speed interface applications such as USB Type-C, USB 3.x, and HDMI, thus serving as a reliable alternative to the RClamp0521P and AZ5325-01F.
IV. Application Scenarios of SE10F10B5.0MA

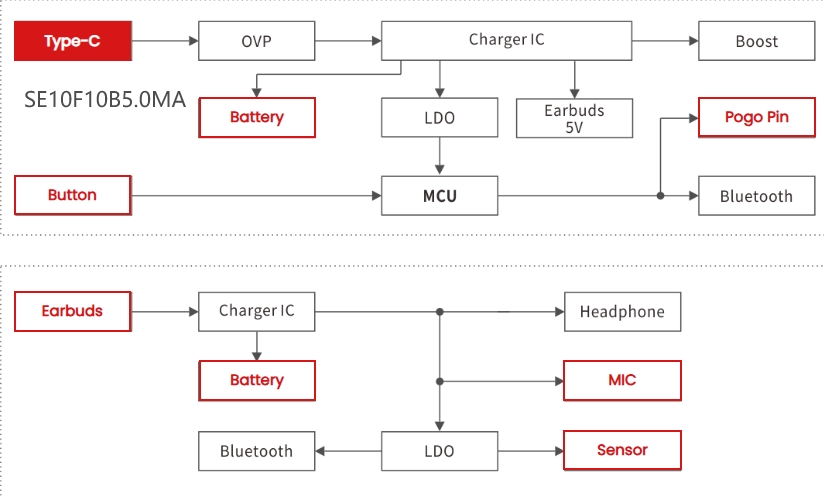

- USB Type-C Interface Protection
- USB 3.0 / USB 3.1 / USB 3.2
- HDMI Interface
- DisplayPort Interface
- High-Speed Communication Devices
- Portable Electronic Products
Summary
In high-speed interface applications, ESD protection devices not only need to meet electrostatic discharge (ESD) protection requirements but also need to consider signal integrity, package size, and long-term supply stability.
If you are evaluating alternatives to the RClamp0521P and AZ5325-01F, or if your project requires optimization of high-speed interface ESD design, the SE10F10B5.0MA is a reliable alternative.
For more information on the SE10F10B5.0MA… For detailed specifications, sample support, or high-speed interface ESD protection solutions, please contact the Semiware technical team. We will provide professional selection advice based on your application needs.
