Overview
With the trends toward electronic device miniaturization and high-speed interfaces, ESD (Electrostatic Discharge) and surge protection have become critical design elements for ensuring product reliability.
The SD12C TVS diode, featuring a compact SOD-323 package and stable protection performance, is a widely used protection component in many electronic devices.
However, during mass production, engineers are increasingly focusing on factors beyond just device performance, such as:
- Supply chain stability
- Lead times
- Cost optimization
- Multi-vendor sourcing strategies
I. Introduction to the Semiware SE3D35B12A TVS Diode
The Semiware SE3D35B12A is a 12V, 350W bidirectional TVS diode with the following key features:
- 12V Reverse Standoff Voltage (VRWM)
- 350W Peak Pulse Power (8/20μs)
- Low leakage current
- Compact SOD-323 package
- Fast response capability
II. SE3D35B12A vs. SD12C Parameter Comparison
| Parameter | Semiware SE3D35B12A | Diodes SD12C | Semtech SD12C |
| Device Type | Bidirectional TVS Diode | Bidirectional TVS Diode | Bidirectional TVS Diode |
| Package | SOD-323 | SOD-323 | SOD-323 |
| Reverse Stand-off Voltage (VRWM) | 12V | 12V | 12V |
| Breakdown Voltage (VBR) Min | 13.3V | 13.0V | 13.3V |
| Peak Pulse Power (PPP) | 350W | 360W | 350W |
| Peak Pulse Current (IPP) | 12A | 15A | 15A |
| Clamping Voltage (VC) | 29.8V @12A max | 24V @15A max | 24V @15A max |
| Reverse Leakage Current (IR) Max | 0.1μA | 1μA | 1μA |
| Junction Capacitance (CJ) | 45pF typ | 52.6pF typ | 100pF max |
III. Why the SE3D35B12A is a Suitable Alternative to the SD12C
3.1 Package Compatibility
The SE3D35B12A utilizes the standard SOD-323 package and is compatible with the SD12C, allowing for replacement without modifying the PCB design.
3.2 Electrical Parameter Matching
As shown in the parameter comparison above, the electrical performance of the SE3D35B12A matches that of the SD12C series, enabling it to meet ESD protection requirements for consumer electronics, communication interfaces, and industrial equipment.
3.3 Semiware Offers More Flexible Supply Options
Opting for a single supplier during the product lifecycle management process can yield:
- Stable product supply
- Flexible delivery support
- More competitive cost solutions
- Professional technical support services
IV. SE3D35B12A (SD12C) Applications
- USB Interfaces
- Portable Electronics
- IoT Devices
- Industrial Equipment
- Consumer Electronics

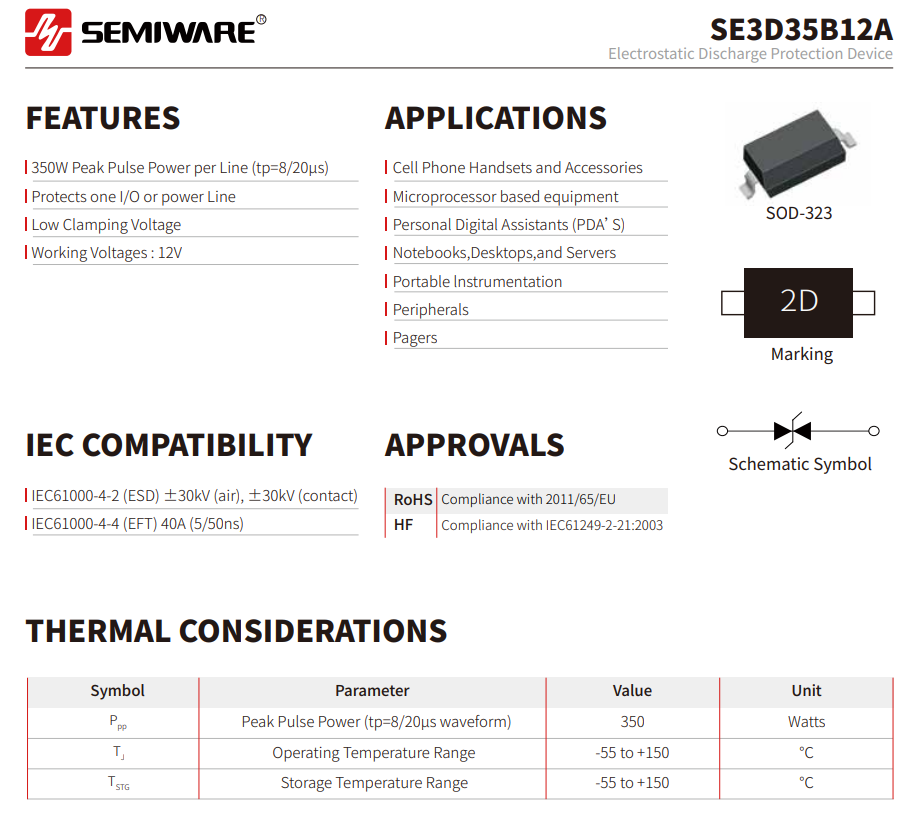

SE3D35B12A Datasheet
Conclusion
For engineers evaluating alternatives to the SD12C, the Semiware SE3D35B12A offers a reliable second-source option that helps mitigate supply chain risks while maintaining design consistency.
Semiware provides flexible procurement solutions and professional technical support, helping customers enhance product reliability, shorten development cycles, and achieve more efficient product lifecycle management.
Looking for a reliable TVS diode alternative for your existing design?
Contact Semiware to discuss your requirements and obtain samples for evaluation and technical support.
