SE06F04B5.0UA-SP: Snap-back Ultra-low Capacitance ESD Protection Diode

Introduction

While high-speed interfaces offer rapid data transmission capabilities, they also face reliability challenges posed by electrostatic discharge (ESD).

In high-speed signal applications, high parasitic capacitance and clamping voltage can lead to:

• Degraded signal integrity
• Data transmission errors
• Damage to high-speed ICs caused by transient voltages

Therefore, ESD protection devices for high-speed interfaces must meet the following requirements:

• Lower junction capacitance to minimize signal impact
• Lower clamping voltage to enhance chip protection
• Sufficient ESD immunity to meet system reliability standards

This article introduces the SE06F04B5.0UA-SP, an ultra-low capacitance ESD protection diode. Featuring an advanced snap-back protection structure and an ultra-compact DFN0603 package, it provides robust protection for high-speed interfaces while delivering low clamping voltage and excellent signal integrity.

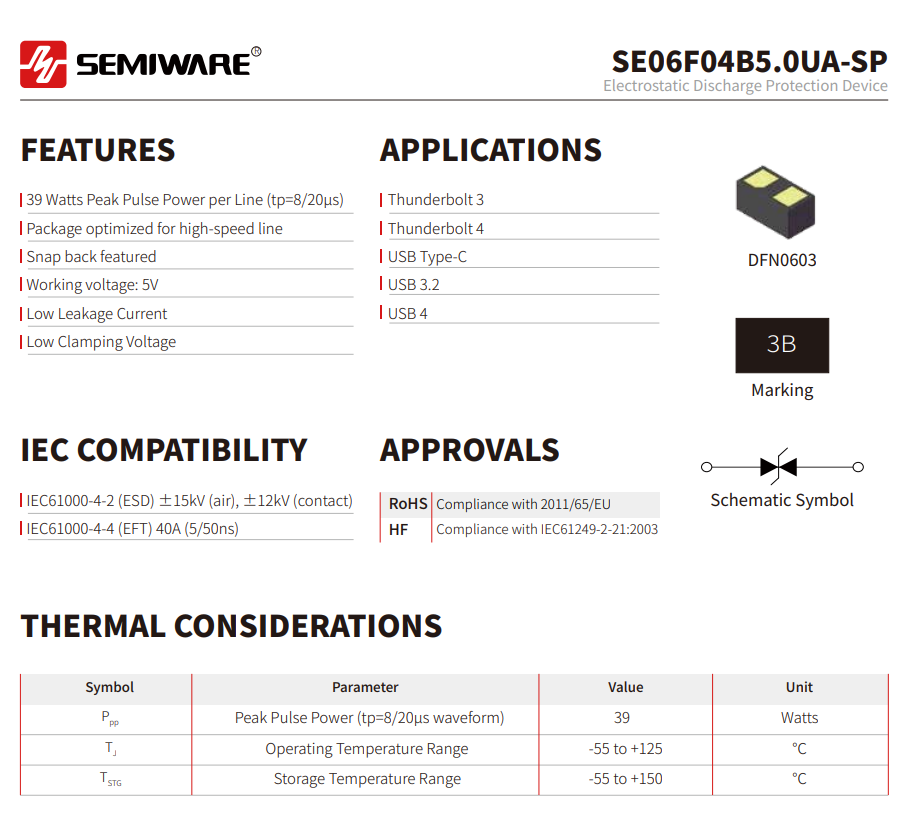

I. Key Features of the SE06F04B5.0UA-SP

1. Snap-back technology for low clamping voltage protection

When an ESD event occurs, the protection device must turn on rapidly to shunt transient current to ground while minimizing the residual voltage applied to the downstream IC.

Compared to conventional ESD structures, snap-back technology offers:

• Lower dynamic resistance
• Lower residual voltage
• Superior chip protection capabilities

2. Ultra-low capacitance design to maintain high-speed signal integrity

In high-speed communication interfaces, the parasitic capacitance of ESD devices directly affects signal quality.

The SE06F04B5.0UA-SP utilizes an ultra-low capacitance design (0.12 pF), meeting the stringent requirements for low parasitic parameters in high-speed signal lines.

Products such as Nexperia’s PESD5V0R1BSF and PESD5V0H1BSF, as well as Semtech’s RClamp5011ZA, are currently mainstream choices. The following parameter comparison analyzes the compatibility and replacement advantages of the SE06F04B5.0UA-SP relative to these products.

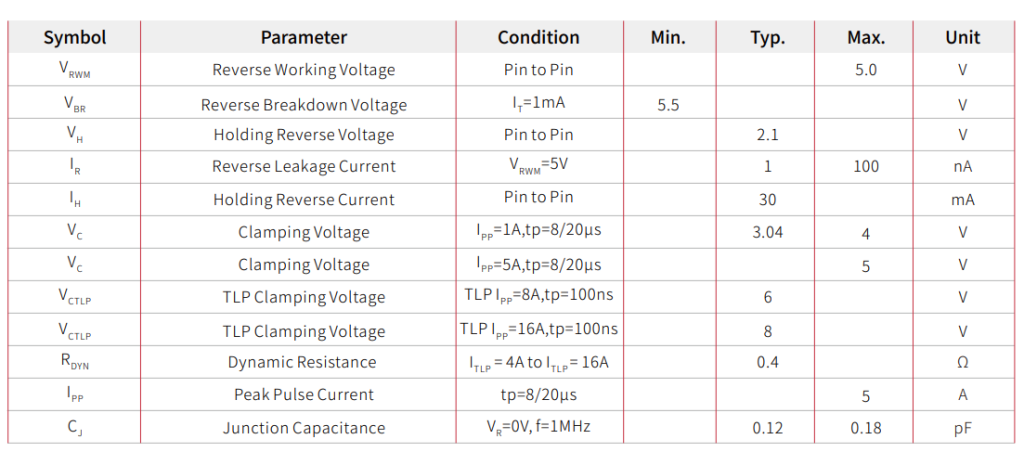

II. Parameter Comparison: SE06F04B5.0UA-SP vs. Mainstream Brand Devices

Comparisons show that the performance of the SE06F04B5.0UA-SP is comparable to that of Nexperia's PESD5V0R1BSF and PESD5V0H1BSF, as well as Semtech's RClamp5011ZA, making it a suitable replacement.

III. Typical Applications for SE06F04B5.0UA-SP

USB Type-C Interface Protection:

USB Type-C interfaces handle both high-speed data transmission and power delivery, placing higher demands on ESD protection devices.

• USB Type-C data lines
• USB high-speed signal protection

High-Speed ​​Communication Equipment:

• Thunderbolt interfaces
• Industrial communication equipment
• Smart terminals
• Consumer electronics
• High-speed control systems

Conclusion

As high-speed interface technology continues to advance, ESD protection solutions must strike a balance between signal integrity, system reliability, and design flexibility.

Leveraging 15 years of experience in circuit protection technology, Semiware offers a comprehensive range of ESD protection solutions for consumer electronics, industrial equipment, automotive electronics, and communication applications. We work closely with our customers to provide full-spectrum support, including component selection, application evaluation, and customized protection solutions.

Please contact the Semiware engineering team for technical support, sample requests, or assistance with ESD protection design.
